This Pro Series stud kit is engineered for Chevy Big Block Mark IV engines (396, 402, 427, and 454) running aftermarket cylinder heads — it is not designed for factory-style/OEM cylinder heads, and the thread and stud locations are matched to aftermarket head specifications. Always confirm your specific aftermarket head brand and bolt pattern before ordering.

Built from 35 chromoly steel with a black finish, this hex stud kit delivers stronger, more consistent clamping force than factory head bolts, helping support reliable head gasket sealing under higher cylinder pressure. It's a common upgrade for performance engine builds, rebuilds, and high-compression combinations using aftermarket Big Block Chevy heads.

This kit is commonly used on Big Block-equipped Chevelle, El Camino, Camaro, Corvette, C10/C-K trucks, Impala, and Caprice builds running an aftermarket head swap. It is not compatible with Small Block Chevy, LS, or LT engine platforms, and is not intended for factory-style cylinder heads. Sold as a complete, application-specific kit — verify your exact aftermarket cylinder head model before purchase.

Stud Kit Engineered Specifically for Aftermarket Big Block Heads
Constructed from 35 chromoly steel with a black finish, this hex stud kit is designed to match the thread and stud pattern requirements of aftermarket Big Block Chevy cylinder heads — not factory-style heads. Confirm your specific aftermarket head brand and model before ordering to ensure correct fitment.

Stronger Clamping Force for High-Compression Builds
Stud-style fasteners guide the cylinder head into position during assembly and provide more consistent clamping force than factory head bolts, helping support reliable head gasket sealing under the higher cylinder pressure typical of performance and high-compression Big Block builds.

COMPATIBLE WITH
CHEVROLET BIG BLOCK MARK IV V8 ENGINES
• 6.5L / 396 in³
• 6.6L / 402 in³
• 7.0L / 427 in³
• 7.4L / 454 in³

COMMON USES
Aftermarket cylinder head installation
Performance engine builds
Street/strip engines
Marine engines
High-compression BBC engines
Engine assembly
Head gasket replacement

NOTES
• Designed for Chevrolet Big Block Mark IV engines equipped with compatible aftermarket cylinder heads.
• Intended for aftermarket cylinder heads from manufacturers such as AFR, Brodix, Dart, Edelbrock, Merlin, Profiler, World Products, and other compatible Mark IV aftermarket heads. Always verify your specific cylinder head manufacturer's fastener requirements before installation.
• Follow the recommended torque sequence and lubricant specifications during installation.
• NOT compatible with OEM factory cast iron or OEM factory aluminum cylinder heads.
• NOT compatible with Chevrolet Big Block Gen V or Gen VI engines.
• NOT compatible with Small Block Chevrolet, LS, or LT engine platforms.

SPECIFICATIONS
Fastener Color: Black
Fastener Material: 35 Chromoly
Fastener Style: Stud
Head Style: Hex
Quantity: Sold as a Kit

Engine Gaskets and Seals

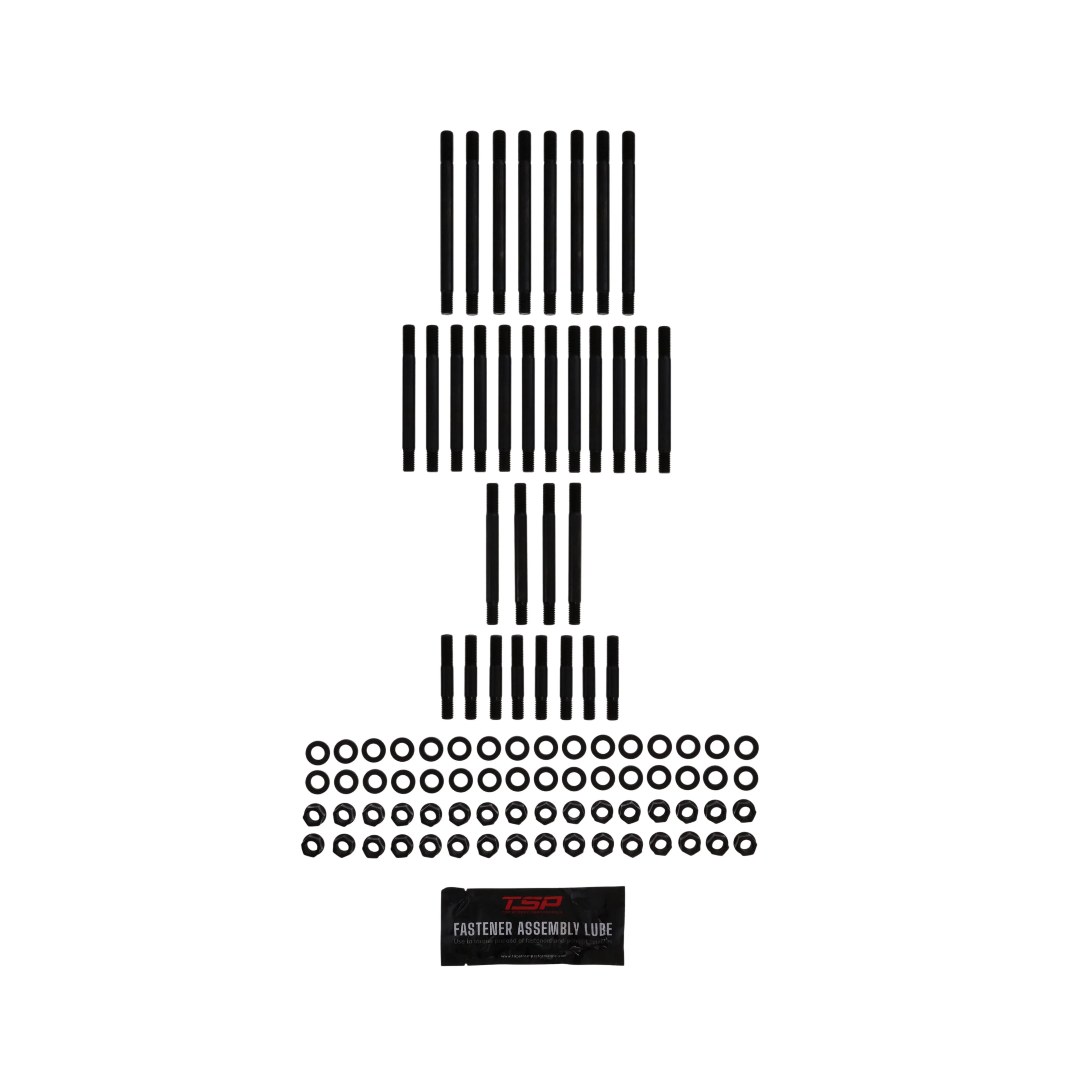

Pro Series Chevy Big Block Aftermarket Cylinder Head Hex Stud Kit
