2005-2013 Corvette Engine Oil Pan - Satin

This satin engine oil pan is designed for 2005-2013 Chevrolet Corvette C6 wet-sump applications providing oil control, under-engine clearance, and reliable sealing in a performance-focused LS-based engine setup. This oil pan supports the lubrication system layout used in compatible C6 applications while maintaining a clean satin appearance for restored, upgraded, or custom engine builds.

Oil Control & C6 Fitment
This oil pan is intended for Corvette C6 wet-sump engine combinations where oil capacity, pickup location, and chassis clearance must match the vehicle’s original layout. Proper oil pan selection is important for maintaining oil pickup positioning, crossmember clearance, and dependable oil return during normal street and performance driving.

Satin Finish & Durable Construction

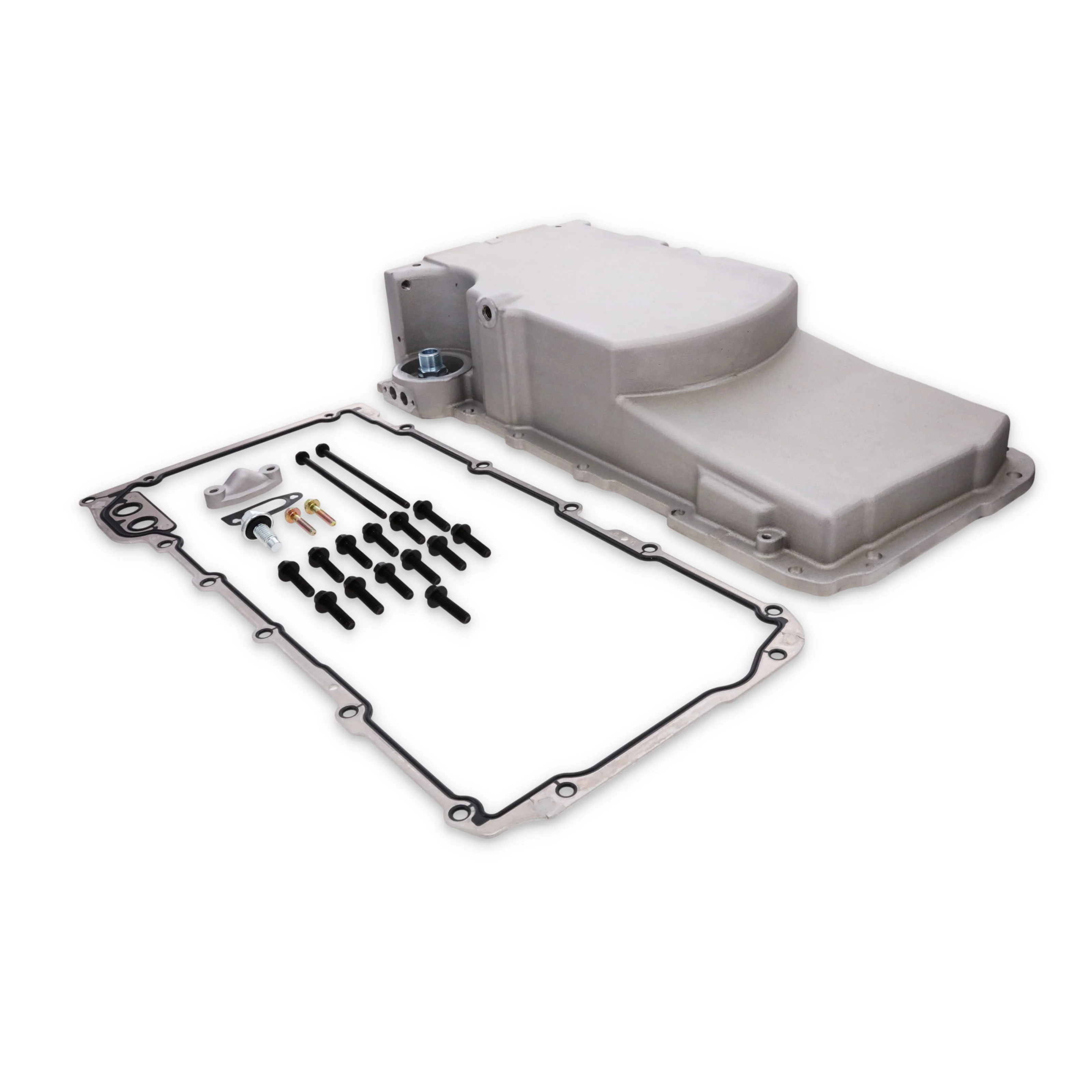

The satin finish provides a clean performance appearance while helping the oil pan blend well with upgraded engine bays and LS-based Corvette builds. Designed as a replacement or upgrade component, this pan includes a gasket as well as mounting hardware.

Installation & System Matching
Verify wet-sump compatibility before installation. Corvette C6 models included multiple LS-based engine configurations, and some performance trims used dry-sump lubrication systems, which require different oiling components. Confirm oil pickup, gasket style, dipstick location, clearance, and related hardware before final installation.

COMPATIBLE WITH
Chevrolet Corvette C6 Wet-Sump Applications
• 2005-2007 Corvette 6.0L / 364 in³ LS2
• 2008-2013 Corvette 6.2L / 376 in³ LS3 wet-sump applications

NOTES:
• Designed for compatible 2005-2013 Chevrolet Corvette C6 wet-sump applications.
• Not intended for dry-sump Corvette applications unless verified with the complete oiling system.
• Verify compatibility with oil pickup tube, gasket, dipstick, windage tray, and installation hardware before installation.
• Corvette C6 Z06, ZR1, and certain Grand Sport manual applications used dry-sump oiling configurations and should be verified before purchase.

COMMON VEHICLE APPLICATIONS
• 2005-2007 Chevrolet Corvette Base LS2
• 2008-2013 Chevrolet Corvette Base LS3
• 2008-2013 Chevrolet Corvette convertible/coupe LS3 wet-sump applications
• Select C6 Corvette wet-sump LS swap applications

SPECIFICATIONS

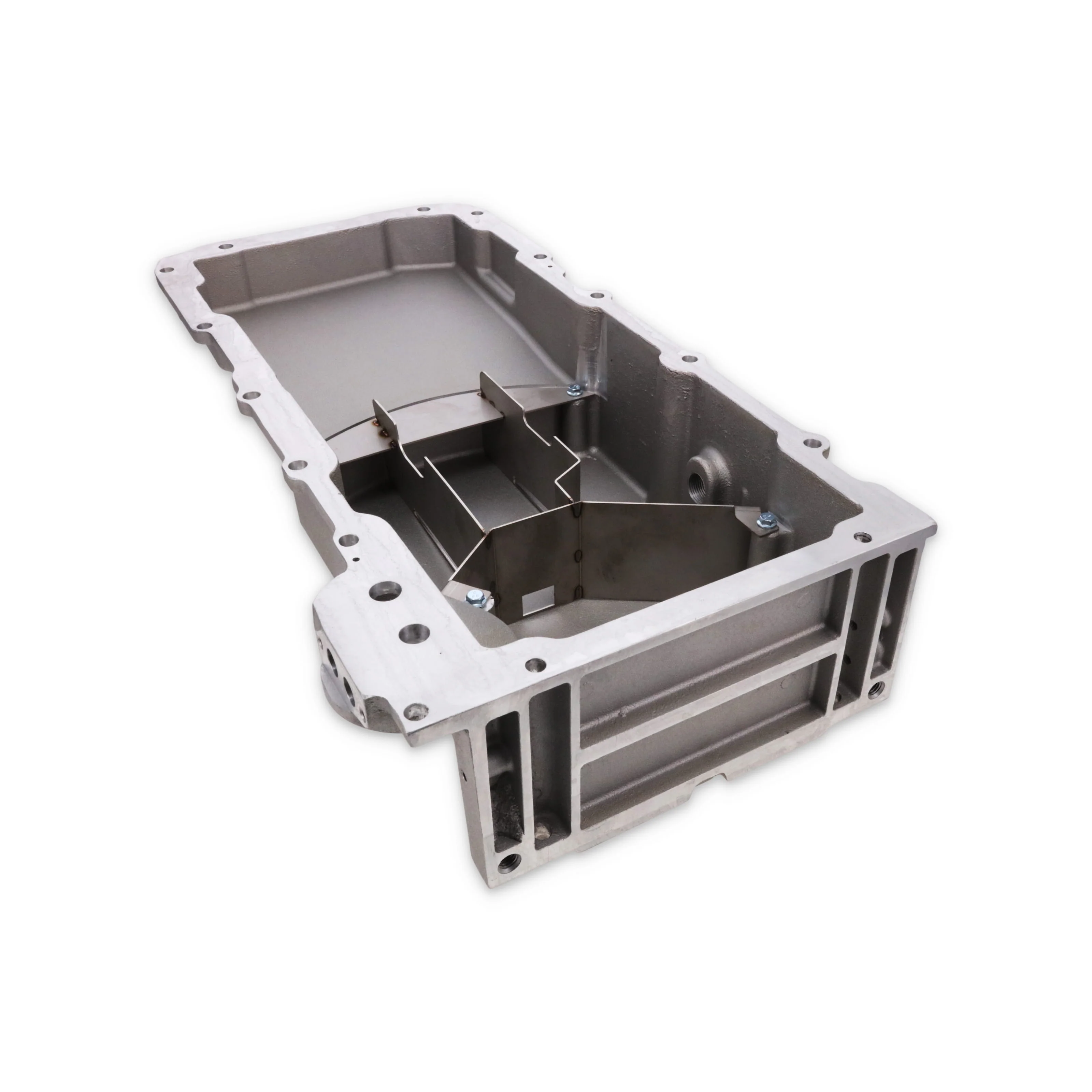

Baffle Included: Yes
Baffled: Yes
Capacity: 6.0 qt.
Color: Silver
Crank Shaft Wiper Included: No
Dipstick Port: No
Drain Plug Included: Yes
Drain Thread Size: M12 x 1.75
Engine Oil Cooler Return Fitting: No
Finish: Satin
Gasket Or Seal Included: Yes
Kick Out Type Pan: No
Material: Aluminum
Maximum Depth: 5.000 in.
Mounting Hardware Included: Yes
Mounting Hole Quantity: 15
Oil Filter Location: Stock
Oil Filter Stud Included: Yes
Oil Passage Cover Included: Yes
Pickup Included: No
Sump Location: Rear
Sump Type: Wet
Windage Tray Included: No
