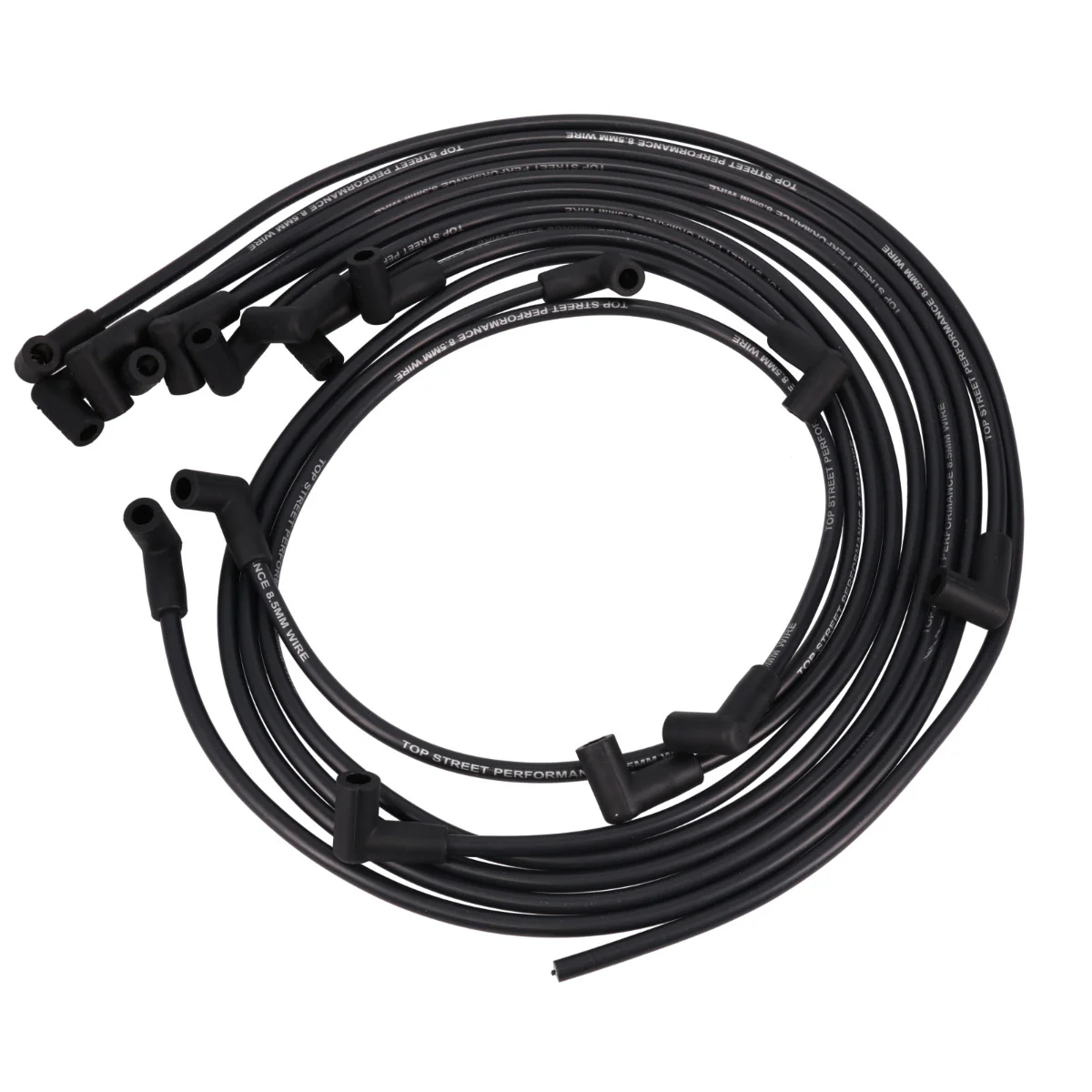

8.5mm Chevy Small Block Under Header Spark Plug Wire Set with 90° Plug Boots - Black

This ignition wire set is configured for Chevy small block ignition applications with 90° spark plug boot configuration, durable boot materials, and suppression-focused construction for reliable street performance use.

Spark Delivery & Ignition Performance
The 8.5 mm outside diameter uses spiral wound core material with radio frequency interference noise suppression to help transfer spark energy while reducing electrical interference in compatible ignition systems. Resistance is listed at 500 Ohms, which should be matched to the ignition setup.

Premium High-Density Silicone Heat Protection
The black high-density silicone insulation and silicone plug boot material help provide heat resistance and long-term durability. Premium high-density silicone rated for up to 600°f supports routing near warm engine-bay components when installed with proper clearance.

Boot Configuration & Routing
The set uses 90° spark plug boot configuration with 90° coil/distributor-end boot degree and Male or Female terminal compatibility to support clean routing between the plugs and distributor or coil packs. Wire separators included: Yes.

Installation & System Matching
Fitment type is listed as Universal. Confirm spark plug terminal style, coil or distributor configuration, cylinder routing order, separator placement, and heat clearance before installation.

COMPATIBLE WITH:
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 262 in3
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3

NOTE: Wire lengths are ideal for routing under headers

COMMON VEHICLE APPLICATIONS:
Chevrolet Camaro
Chevrolet Chevelle
Chevrolet Nova
Chevrolet C10
Chevrolet El Camino

SPECIFICATIONS:
Boot Type: 90°
Coil End Boot Color: Black
Core Material: Spiral Wound
Distributor End Boot Degree: 90°
Distributor End Boot Type: Female
Distributor Terminal Type: Male
Ignition Coil End Boot Degree: 90°
Ignition Coil End Boot Type: Male or Female
Ignition Coil Terminal Type: Male or Female
Insulation Color: Black
Insulation Material: High-density Silicone
Noise Suppression Type: Radio Frequency Interference
Outside Diameter: 8.5 mm
Quantity: Full Set of 9 Plug Wires
Resistance: 500 Ohms
Spark Plug Boot Material: Silicone
Spark Plug End Boot Color: Black
Spark Plug End Boot Degree: 90°
Spark Plug End Boot Quantity (Straight): 8
Universal or Specific Fit: Universal
Wire 1 Length: 57.00 in.
Wire 2 Length: 57.00 in.
Wire 3 Length: 49.00 in.
Wire 4 Length: 45.00 in.
Wire 5 Length: 29.00 in.
Wire 6 Length: 29.00 in.
Wire 7 Length: 27.00 in.
Wire 8 Length: 23.00 in.
Wire 9 Length: 36.00 in.
Wire Separators Included: Yes
