Chrysler Small Block Power Steering & Alternator System (318, 340 & 360) - Polished
Chrysler Small Block 360 Alternator & PS Pulley and Bracket System

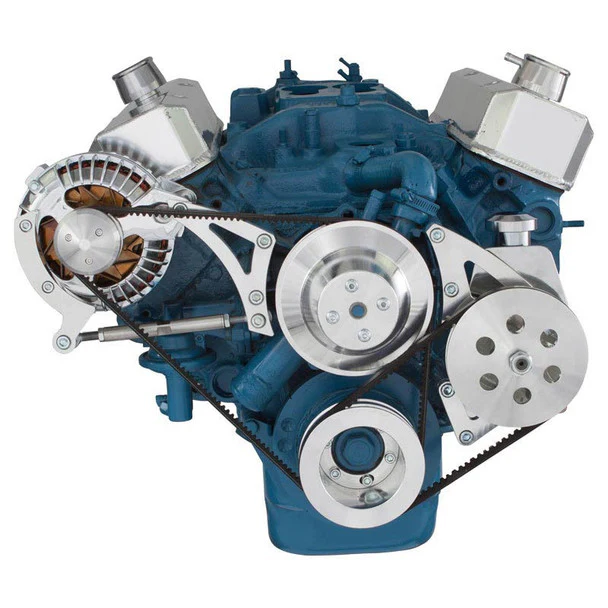

Complete V-belt system for the small block Chrysler engines with alternator and power steering.
Kit Includes:
- SCRL2KIT (2 Groove Crank Pulley, 1 Groove Water Pump Pulley and 1 Groove Alternator Pulley)
- 360-ALTBRKT
- 360-PSBRKT
- SCR3PS keyway power steering pulley
Application Notes:
- Use with Chrysler square or round back alternator, or with either the GM 10SI Alternator or CS130 Alternator.
- Compatible with Hydroboost.

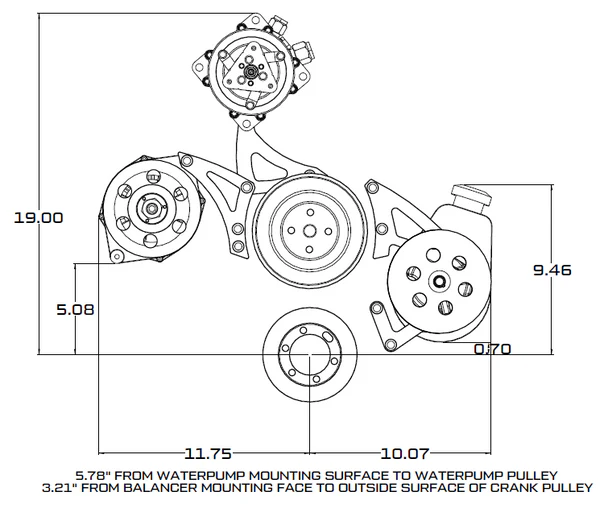

- Waterpump to Balancer measurement: 4.5"
- Requires a Chrysler water pump from 1970 and beyond or a CVF water pump.
- Use with Sanden 508 Style AC compressor.
- Use with Saginaw P-Series power steering pump with 5/8" Keyway and mounting stud in lower right corner on the back of the pump (see image below). Power Steering pump not included with system.
Compatible with:
Small Block Chrysler Engines with Alternator and Power Steering.
• 5.2 L / 318 in³
• 5.6 L / 340 in³
• 5.9 L / 360 in³
| Product Type | V-Belt System |
| Alternator Position | Mid - Passenger |
| Power Steering | Yes - Saginaw |
| Air Conditioning | None |
| Finish | Polished |
| Belt Type | V-Belt |
| Water Pump Type | Mechanical |
| Make | Chrysler |
| Engine | 360 Small Block |
