GM LS V8 1.9 HP Mini Starter - Black

Upgrade your LS swap or LS-powered vehicle with a compact high-torque mini starter engineered for GM Gen III and Gen IV LS-based V8 applications. Featuring a 1.9 horsepower motor and 4.0:1 gear reduction ratio, this starter delivers dependable cranking performance for street, performance, and custom engine swap builds.

Compatible with many 4.8L, 5.3L, 5.7L, and 6.0L LS engine combinations, including popular LR4, LM4, LM7, L33, L59, LS1, LS6, LQ4, and LQ9 applications, this starter is designed to provide reliable starting power while maintaining a compact footprint. The gear reduction design helps increase torque output for dependable hot and cold starts.

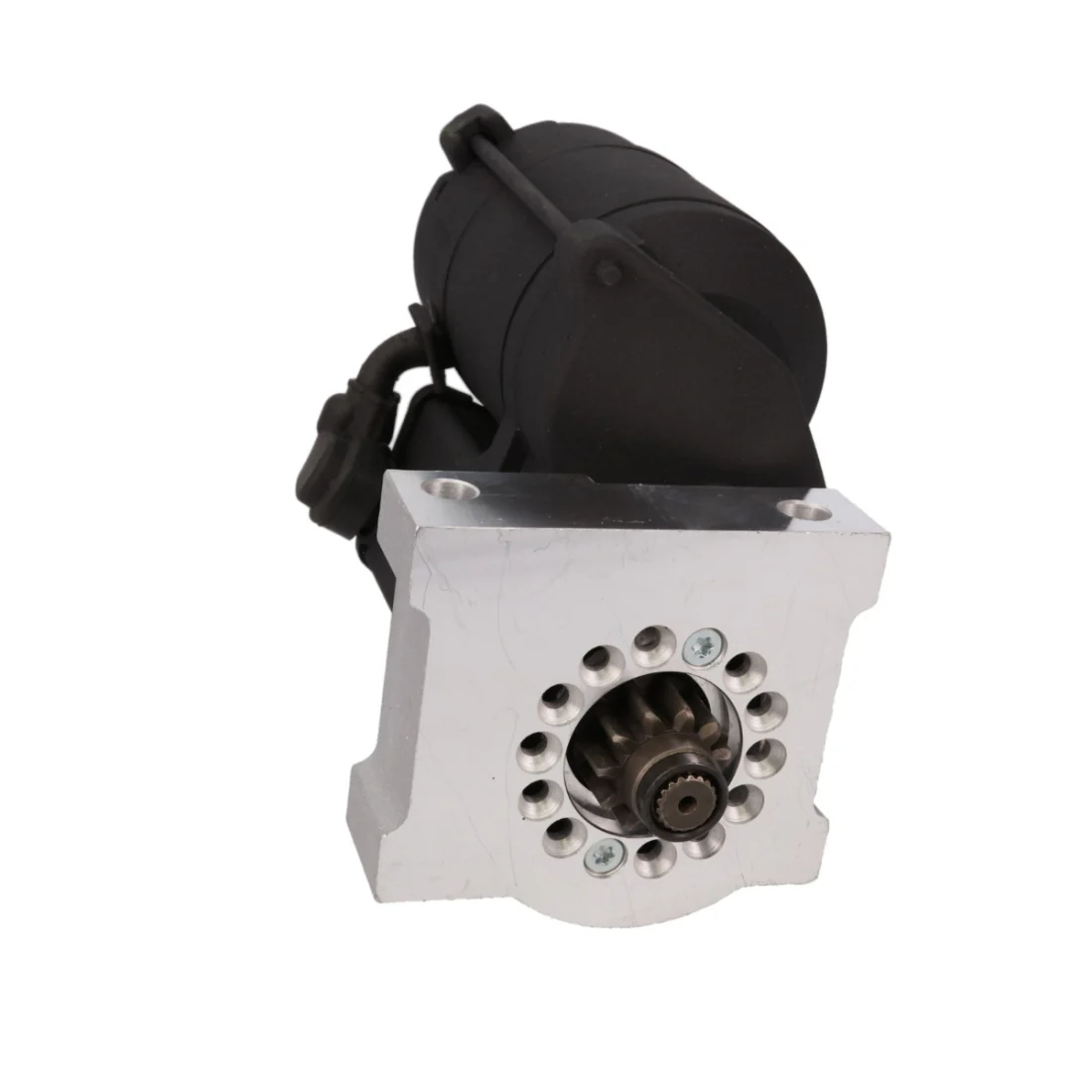

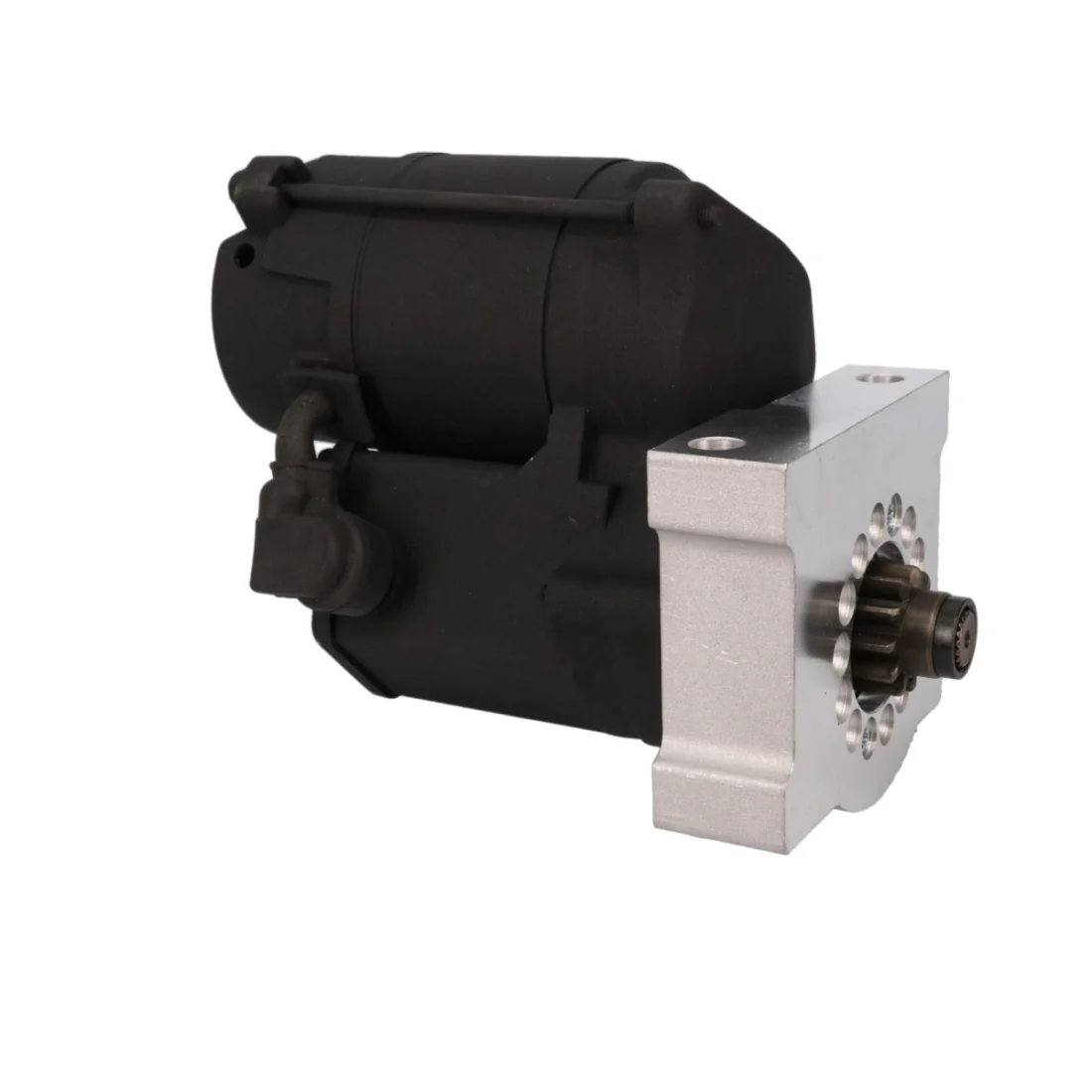

The compact Nippondenso-style housing provides additional clearance around headers, oil pans, steering components, and chassis modifications commonly encountered in LS swap projects. An adjustable billet aluminum mounting block allows easier starter positioning and installation flexibility across a wide range of LS-powered vehicles, muscle cars, trucks, street rods, and custom builds.

Rated for engine combinations up to approximately 12.0:1 compression ratio, this starter is engineered to deliver reliable cranking power for demanding street and performance applications. The black finish adds a polished appearance while maintaining the durability needed for long-term use.

Whether you're replacing a factory LS starter, upgrading a performance build, or completing an LS engine swap, this high-torque mini starter delivers the power, clearance, and reliability needed for dependable engine starts.

Compact Mini Starter Design
The Nippondenso-style housing helps create additional clearance around headers, oil pans, steering linkage, and chassis components commonly encountered in LS swap projects. Its compact footprint makes it a popular upgrade for LS-powered muscle cars, trucks, street rods, and custom builds.

High-Torque Starting Performance
The 1.9 HP motor and 4.0:1 gear reduction ratio work together to provide strong cranking performance for GM LS-based engine combinations. Gear reduction technology helps improve starter efficiency while maintaining a lightweight compact package.

COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)
• 4.8 L / 294 in3
• 5.3 L / 325 in3
• 5.7 L / 346 in3 commonly referred to as 350 in3
• 6.0 L / 364 in3

NOTE: Fits 168-tooth flywheels

COMMON VEHICLE APPLICATIONS
Chevrolet Chevelle / Nova / Camaro
Chevrolet C10 / K10 Trucks
Chevrolet Impala / El Camino
Street rod, muscle car, and custom Chevy builds

NOTES
Fits 168-tooth flywheel applications
Adjustable billet aluminum mounting block included
Standard rotation design
Designed for GM Gen III and Gen IV LS-based engine platforms
Verify flywheel tooth count, oil pan, header, and flexplate clearance before installation

SPECIFICATIONS
Starter Style: Mini
Starter Type: Compact
Color: Black
Adjustable Mounting Block: Yes
Starter Rotation: Standard
Maximum Compression Ratio: 12.0:1
Gear Reduction Ratio: 4.0:1
Horsepower: 1.9
Starter Housing Material: Cast Aluminum
Mounting Block Material: Billet Aluminum
