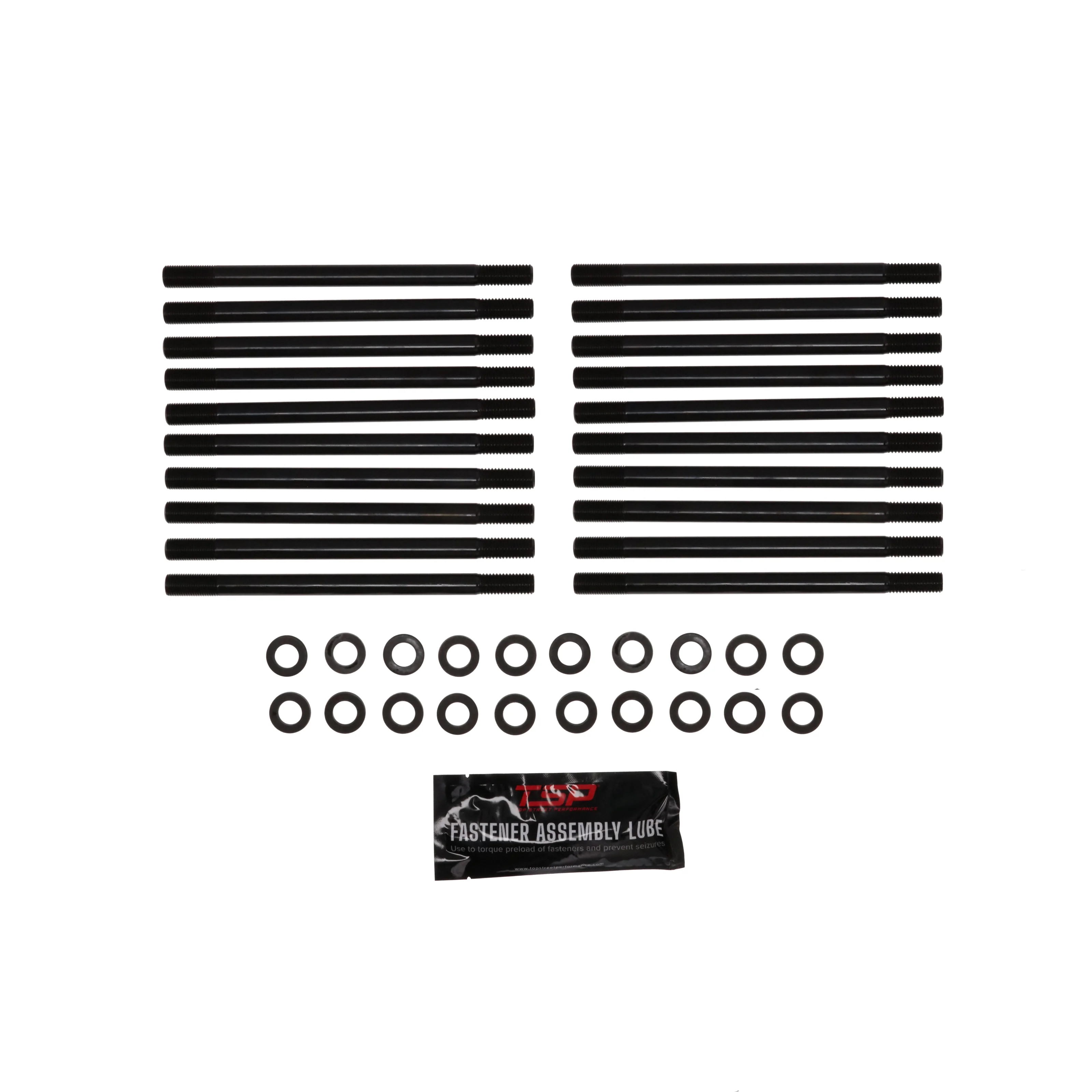

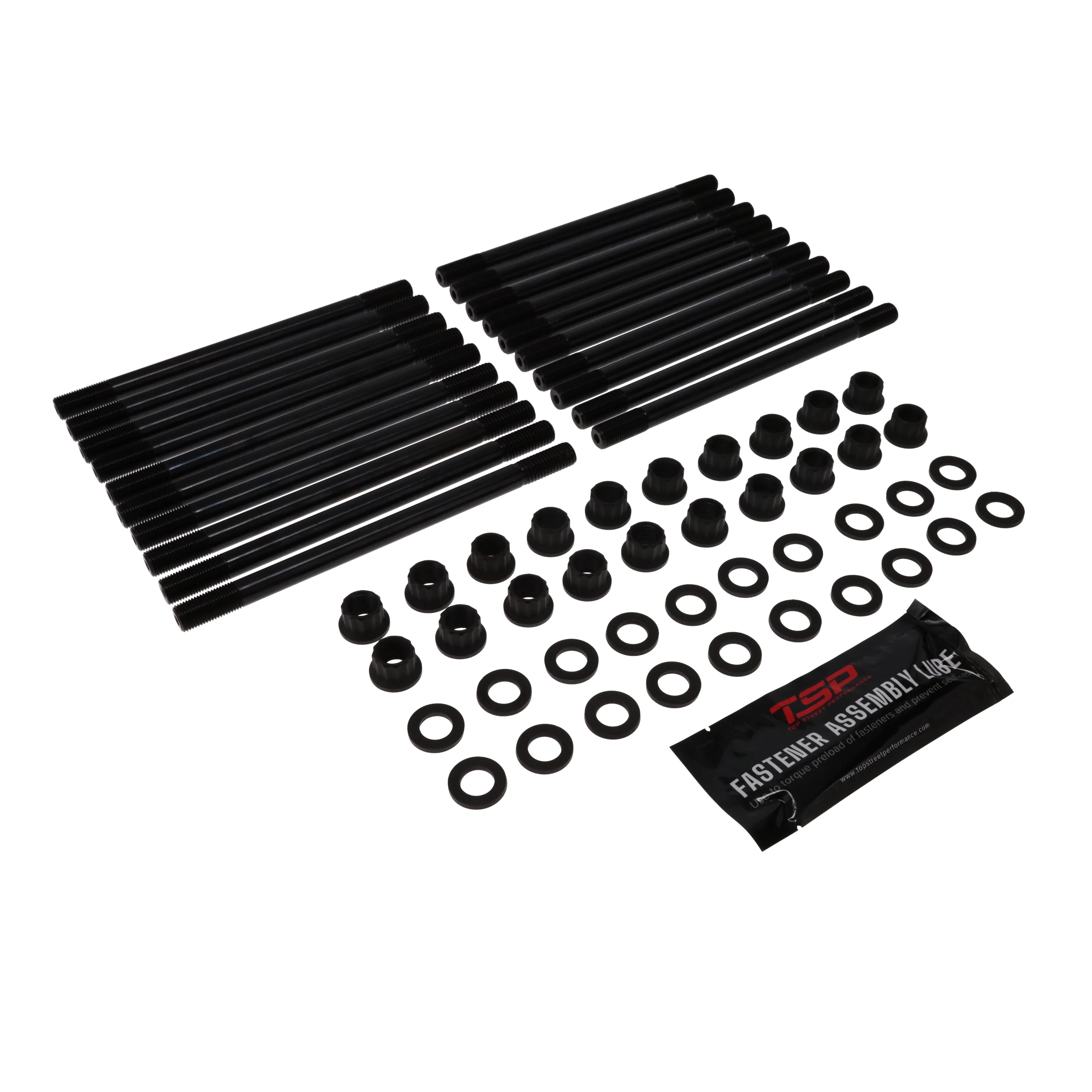

Pro Series 03-07 Ford Power Stroke 6.0L Cylinder Head Stud Kit

TSP's fasteners are composed of 35 chromoly steel for a minimum tensile strength of 190,000 PSI. Threads are rolled after heat treatment and then tested for tensile and yield strength. All hardware is then given a black oxide finish and oil coating to protect from rust and corrosion.

COMPATIBLE WITH
FORD POWER STROKE DIESEL V8
• 6.0L / 365 in³ Power Stroke

COMMON VEHICLE APPLICATIONS
Ford F-250 / F-350 Super Duty (2003–2007 6.0L Power Stroke)
Ford Excursion (6.0L Power Stroke equipped)
Performance towing and diesel repair applications

NOTES

Designed for 6.0L Power Stroke cylinder head stud applications.

Verify model year, head gasket selection, torque procedure, and engine configuration before installation.

Not compatible with 7.3L, 6.4L, or 6.7L Power Stroke engines.

SPECIFICATIONS
Torque: 5 steps up to 210ft-lbs / step 1 30ft-lbs / step 2 75 ft-lbs / step 3 115ft-lbs / step 4 165ft-lbs / step 5 210ftlbs
Color: Black
Fastener Style: Stud
Grade: Performance
Head Style: 12-point
Material: 35 Chromoly Steel
Quantity: Sold as a kit
