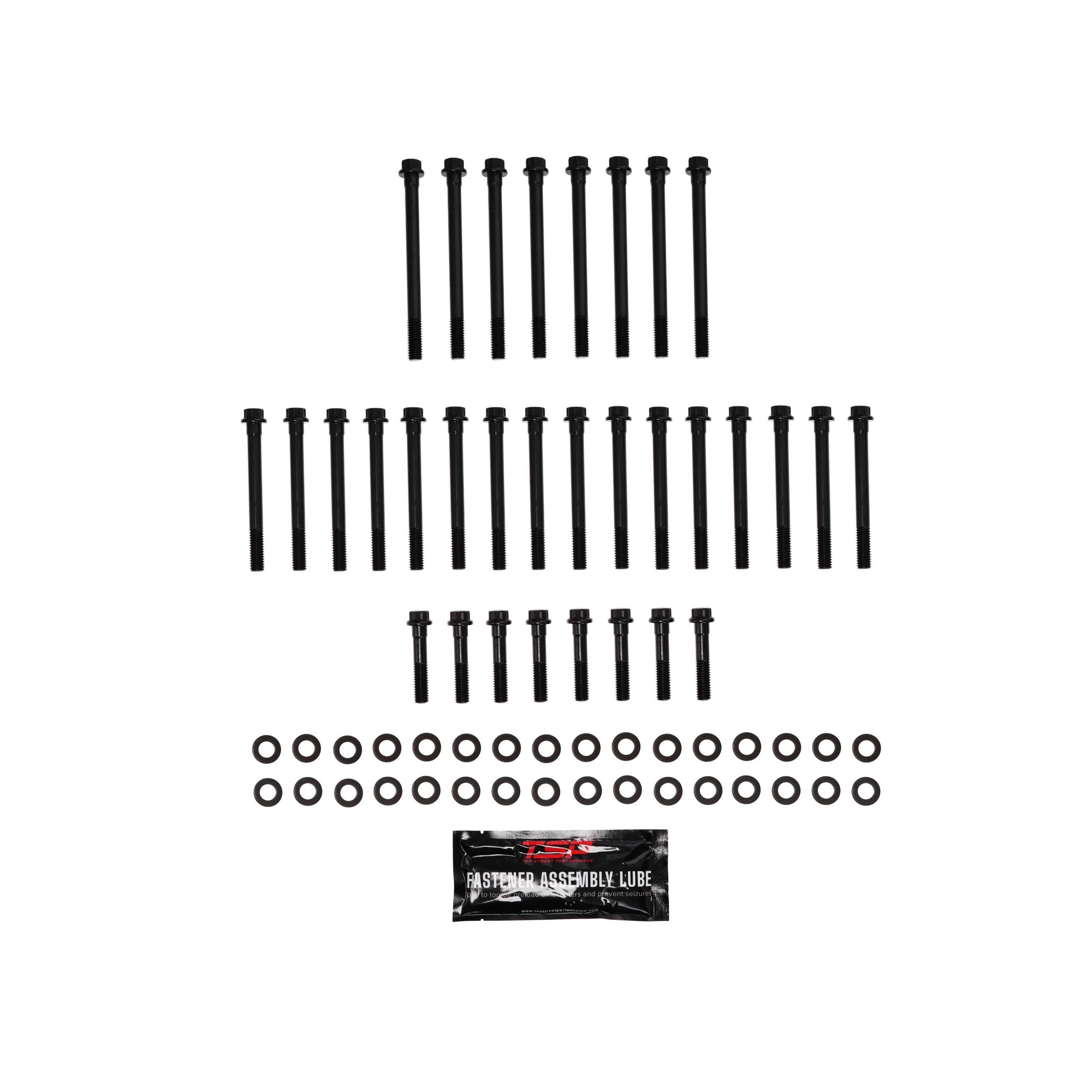

Pro Series Chevy Big Block Bowtie / Dart / Merlin / Pro Top / World Products Cylinder Head 12-point Bolt Kit

Build or rebuild your aftermarket Big Block Chevy combination with confidence using the Top Street Performance Pro Series 12-Point Cylinder Head Bolt Kit, engineered specifically for Chevrolet Big Block Mark IV engines equipped with Bowtie, Dart, Merlin, Pro Top, and World Products aftermarket cylinder heads. Manufactured from heat-treated 35 Chromoly steel with a minimum tensile strength of 190,000 PSI and threads rolled after heat treatment, this BBC head bolt kit delivers the clamping force, installation accuracy, and long-term durability that high-performance and racing engine builds demand.

Aftermarket Big Block Chevy cylinder heads — including the popular Dart Pro 1, Merlin iron and aluminum heads, late Bowtie aluminum heads, Pro Top Line heads, and World Products iron heads — require head-specific fastener kits that match their unique bolt hole geometry and length requirements. Using factory-style head bolts on these aftermarket heads can result in improper thread engagement, inaccurate clamping force, and compromised head gasket sealing. This kit is engineered to the correct bolt lengths and specifications for these five aftermarket head families, ensuring proper thread engagement and consistent clamping force across all sealing surfaces.

The 12-point head design provides a key installation advantage over standard hex head bolts in high-performance engine applications: the smaller wrenching profile of the 12-point head allows bolt access and torque application in tighter clearance situations — and critically, allows re-torquing of the cylinder heads on assembled engines without requiring valve cover removal. TSP specifies a four-step torque procedure for this kit: Step 1 — 25 ft-lbs, Step 2 — 50 ft-lbs, Step 3 — 75 ft-lbs, Step 4 — 85 ft-lbs on long bolts / 75 ft-lbs on short bolts. Always follow the cylinder head manufacturer's recommended torque sequence and lubricant specification.

Finished with a black oxide coating and protective oil finish for corrosion resistance during storage and installation. Not compatible with factory cast iron Big Block Chevy heads — those applications use a different bolt kit. Not compatible with Small Block Chevy, LS, or LT engine platforms.

Pro Series 12-Point Bolt Technology
Aftermarket Big Block Chevy cylinder heads are designed with fastener hole geometry, bolt lengths, and thread engagement requirements that differ from factory Mark IV cast iron heads. Using incorrect head bolts on Bowtie, Dart, Merlin, Pro Top, or World Products heads can result in insufficient thread engagement in the block, uneven clamping load distribution across the head gasket, and the potential for head gasket failure under the cylinder pressure and thermal cycling of performance operation. TSP's Pro Series 12-Point Bolt Kit is engineered specifically for these five aftermarket head families on the Mark IV block architecture, providing the correct bolt lengths and specifications for proper thread engagement and even clamping force at every cylinder head position. Bolts are manufactured from 35 Chromoly steel with threads rolled after heat treatment — achieving a minimum tensile strength of 190,000 PSI — and are finished with a black oxide coating and protective oil finish for corrosion resistance. The 12-point socket head design allows precise torque application with a matching 12-point socket and provides a reduced wrenching profile compared to standard hex head bolts, enabling access in tight clearance situations and the ability to re-torque cylinder heads on assembled engines without valve cover removal.

Performance Benefits
At 190,000 PSI minimum tensile strength, these head bolts are engineered to handle the cylinder pressure demands of street performance, drag racing, marine, and high-compression Big Block Chevy combinations running aftermarket cylinder heads. The four-step torque procedure — 25 / 50 / 75 / 85 ft-lbs on long bolts, 75 ft-lbs on short bolts — ensures even and progressive clamping load is applied across all head gasket sealing surfaces, reducing the risk of gasket distortion or uneven compression that can occur when full torque is applied in a single step. The published torque procedure eliminates guesswork from the assembly process and helps ensure accurate, repeatable results across professional and experienced home builder applications alike. Combined with the correct thread engagement provided by application-matched bolt lengths, this kit supports the reliable head gasket sealing and cylinder pressure retention that serious BBC performance builds require.
