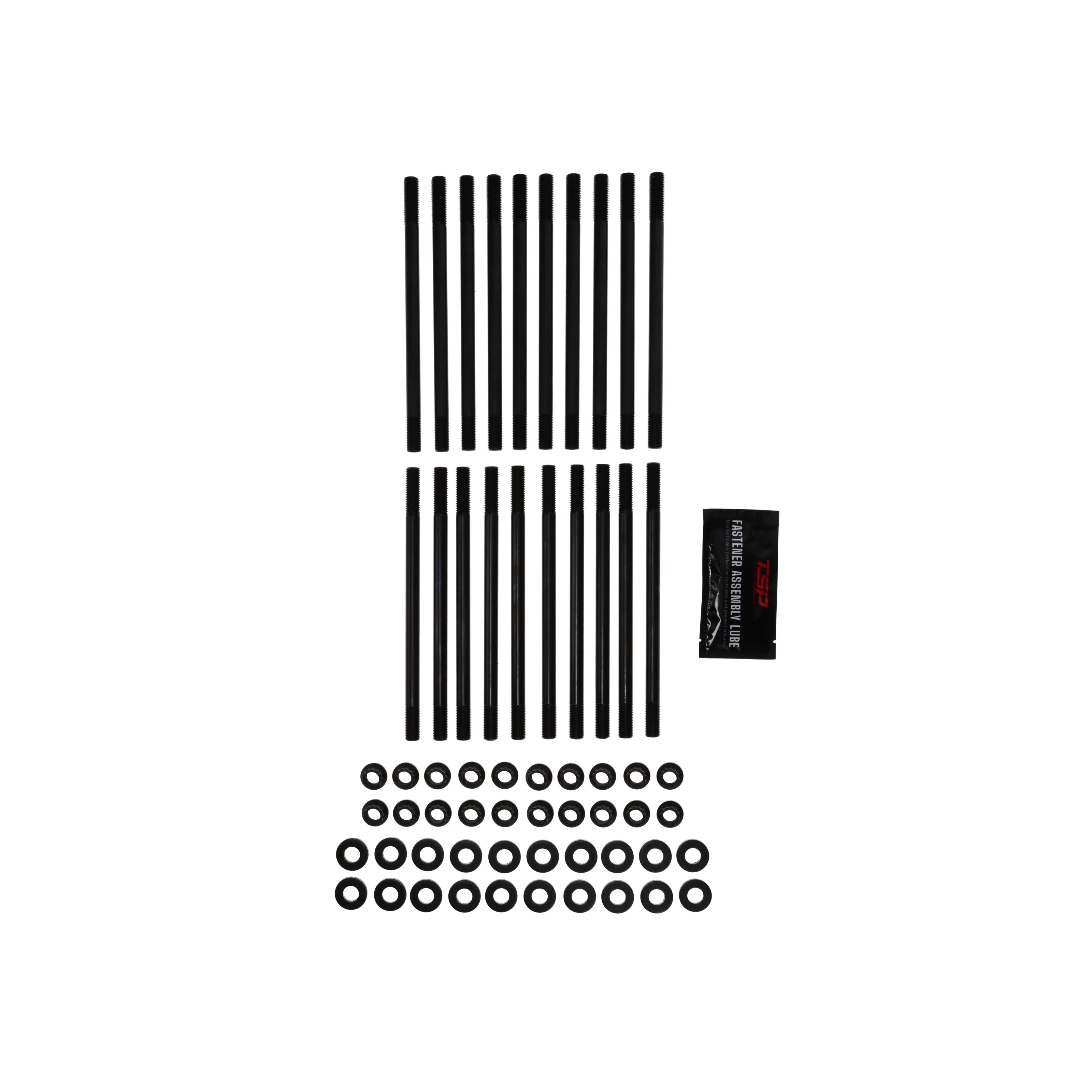

Pro Series Ford 18-19 5.0L Coyote M12 Cylinder Head Stud Kit

TSP's fasteners are composed of 35 chromoly steel for a minimum tensile strength of 190,000 PSI. Threads are rolled after heat treatment and then tested for tensile and yield strength. All hardware is then given a black oxide finish and oil coating to protect from rust and corrosion.

COMPATIBLE WITH
FORD 5.0L COYOTE V8
• 5.0L / 302 in³ Coyote (Gen 3, 2018–2019 applications)

COMMON VEHICLE APPLICATIONS
Ford Mustang GT (2018–2019 5.0L Coyote equipped)
Ford F-150 (2018–2019 5.0L Coyote equipped, where applicable)
Coyote swap and performance builds using compatible cylinder heads

NOTES

Designed for 2018–2019 Ford 5.0L Coyote M11/M12 cylinder head stud applications as listed by SKU.

Verify model year, thread size, cylinder head design, and torque procedure before installation.

Not compatible with Ford Small Block Windsor, Modular 4.6L/5.4L, FE, or Big Block Ford engines.

SPECIFICATIONS
Torque: 3 steps up to 125ft-lbs / step 1 30ft-lbs / step 2 75 ft-lbs / step 3 125ft-lbs
Color: Black
Fastener Style: Stud
Grade: Performance
Head Style: 12-point
Material: 35 Chromoly Steel
Quantity: Sold as a kit
