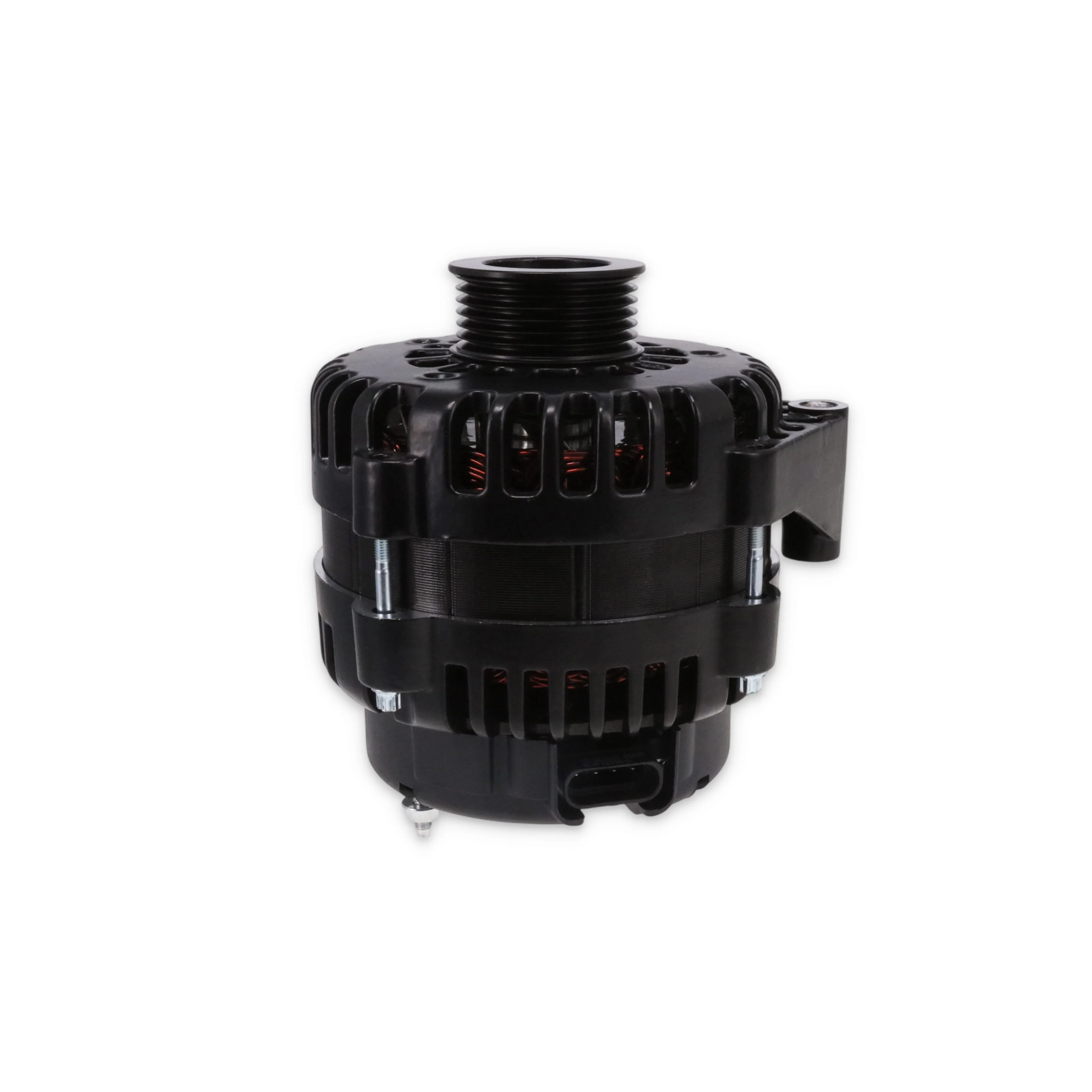

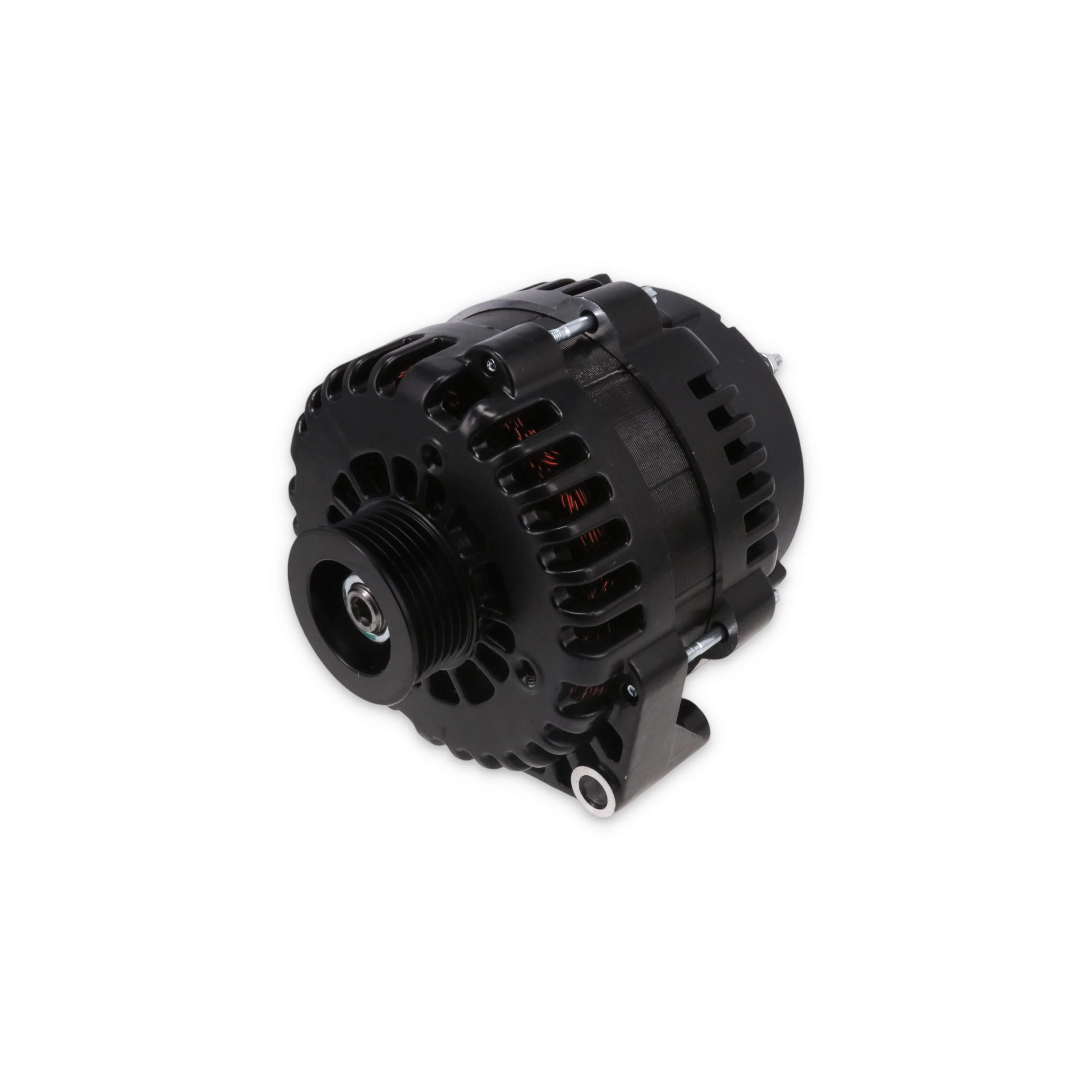

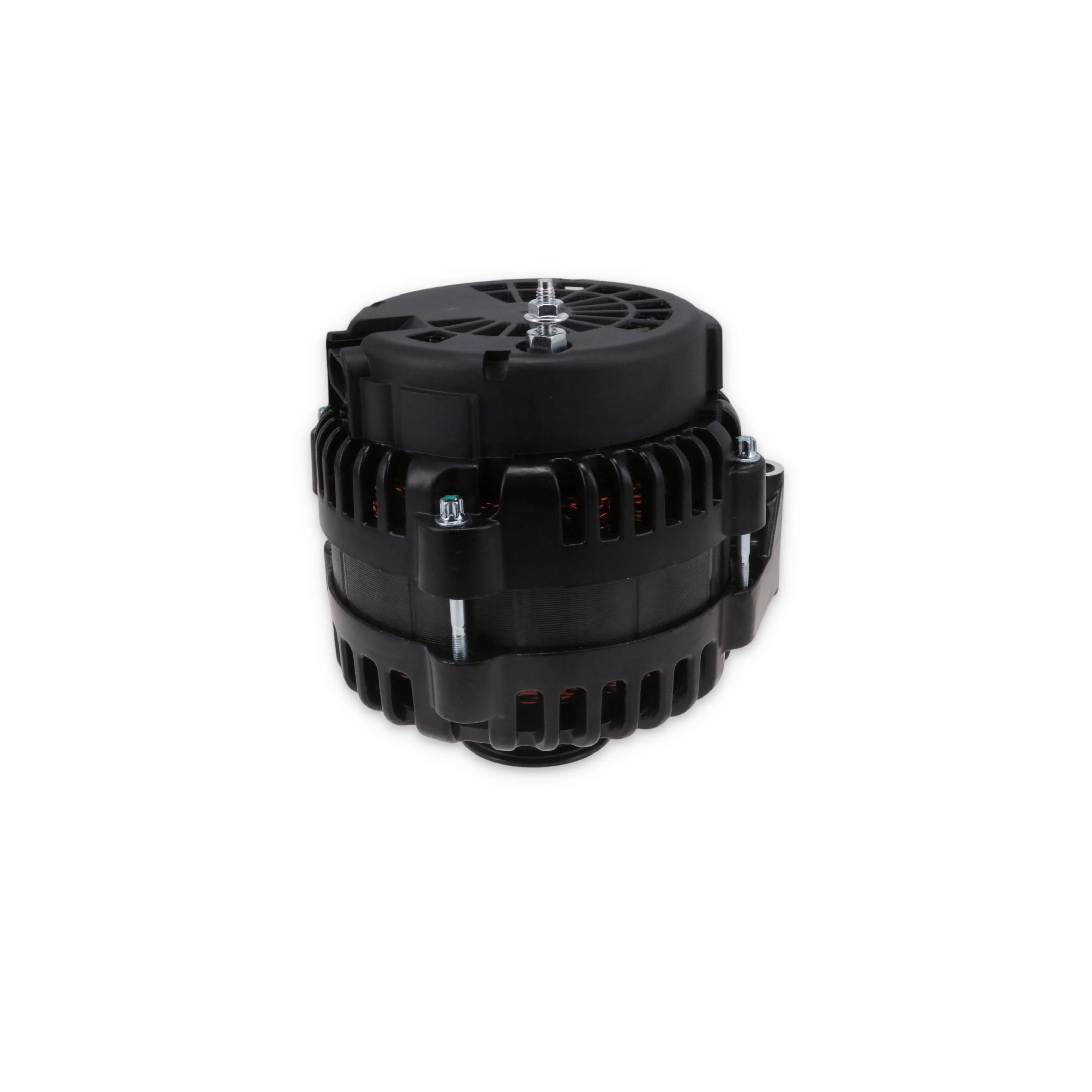

GM AD244 Style High Output 220 Amp Alternator - Black

Upgrade your LS truck charging system with this GM AD244 Style High Output 220 Amp Alternator engineered to deliver exceptional charging performance for vehicles with increased electrical demands. Designed for compatible GM LS truck accessory drive systems, this alternator provides the charging capacity needed to support modern performance upgrades, electrical accessories, and high-demand vehicle systems.

The 220 amp output provides a substantial increase over many factory charging systems and helps support electric cooling fans, electronic fuel injection systems, electric fuel pumps, aftermarket ignition systems, high-output lighting, air conditioning systems, audio equipment, winches, off-road accessories, and other power-hungry electrical components. Increased charging capacity helps maintain stable system voltage during idle, cruising, towing, and demanding operating conditions.

Built using the GM AD244 case design commonly found on many 1999-2006 GM truck applications, this alternator is designed for use with compatible LS truck accessory drive systems and factory-style AD244 mounting brackets. It is commonly used on 4.8L, 5.3L, 5.7L, 6.0L, 6.5L Diesel, 6.6L Duramax, and 8.1L applications where increased charging capacity is required.

The internally regulated design helps maintain consistent charging system performance while utilizing the factory-style 4-pin electrical connection commonly found on AD244-equipped applications. Unlike one-wire alternators, this design is intended to integrate with compatible factory-style charging system controls and wiring configurations.

Equipped with a 6-groove serpentine pulley and finished in bright chrome, this alternator combines show-quality appearance with dependable charging capability. Whether you're upgrading an LS-powered truck, supporting additional electrical accessories, building a tow vehicle, completing an LS swap with truck accessories, or replacing a factory AD244 alternator, this high-output alternator delivers the charging performance and reliability needed for demanding applications.

220 Amp Charging Performance
The 220 amp output provides the charging capacity needed for electric cooling fans, EFI systems, electric fuel pumps, aftermarket ignition systems, lighting upgrades, audio equipment, off-road accessories, and other high-demand electrical components. High-output charging helps maintain stable system voltage under increased electrical loads.

GM AD244 Case Design
Built using the AD244 alternator platform commonly found on many 1999-2006 GM truck applications. Designed for compatible LS truck accessory drive systems utilizing AD244 mounting locations, factory-style brackets, and factory-style charging system connections.

COMPATIBLE WITH
GM LS TRUCK ACCESSORY DRIVE SYSTEMS
GM LS-Based 4.8L, 5.3L, 5.7L, and 6.0L Engines
GM 4.3L V6
GM 6.5L Diesel
Duramax 6.6L Diesel
GM 8.1L / 496 Big Block
Compatible LS Truck Accessory Drive Systems

COMMON VEHICLE APPLICATIONS
Chevrolet Silverado
Chevrolet Tahoe
Chevrolet Suburban
GMC Sierra
GMC Yukon
Chevrolet Express Vans
GMC Savana Vans
LS Engine Swaps Using Truck Spacing
Tow Vehicles
Off-Road Builds

NOTES
Designed for AD244-style alternator applications
Utilizes factory-style 4-pin connector
Not compatible with 2-pin harnesses
Verify truck vs. car accessory spacing before ordering
Verify mounting brackets and pulley alignment prior to installation

SPECIFICATIONS:
AC Service Tap: No
Amperage Rating: 220 A
Brushless: No
Case Circumference: 17.900 in.
Case Color: Silver
Case Material: Aluminum
Distance Between Mounting Feet: 4.100 in.
External Fan Included: Yes
External Regulator Included: No
Family: AD-244
Fan Type: External
Finish: Black
Ground Type: Case ground
Mounting Type: Split Mount
One Wire Capable: No
Outside Pulley Diameter: 2.500 in.
Plug Clock Rear View Main Mounting Ear at 6 O Clock: 10 o'clock
Plug Type: 4-pin
Pulley Belt Type: Serpentine
Pulley Groove Quantity: 6
Pulley Included: Yes
Regulator Type: Internal
Rotation Direction: Clockwise
Split Mounting Foot Overall Inner Spacing: 4.100
Split Mounting Foot Overall Outside Spacing: 5.100
Terminal Quantity: 5
Voltage: 12 VDC
