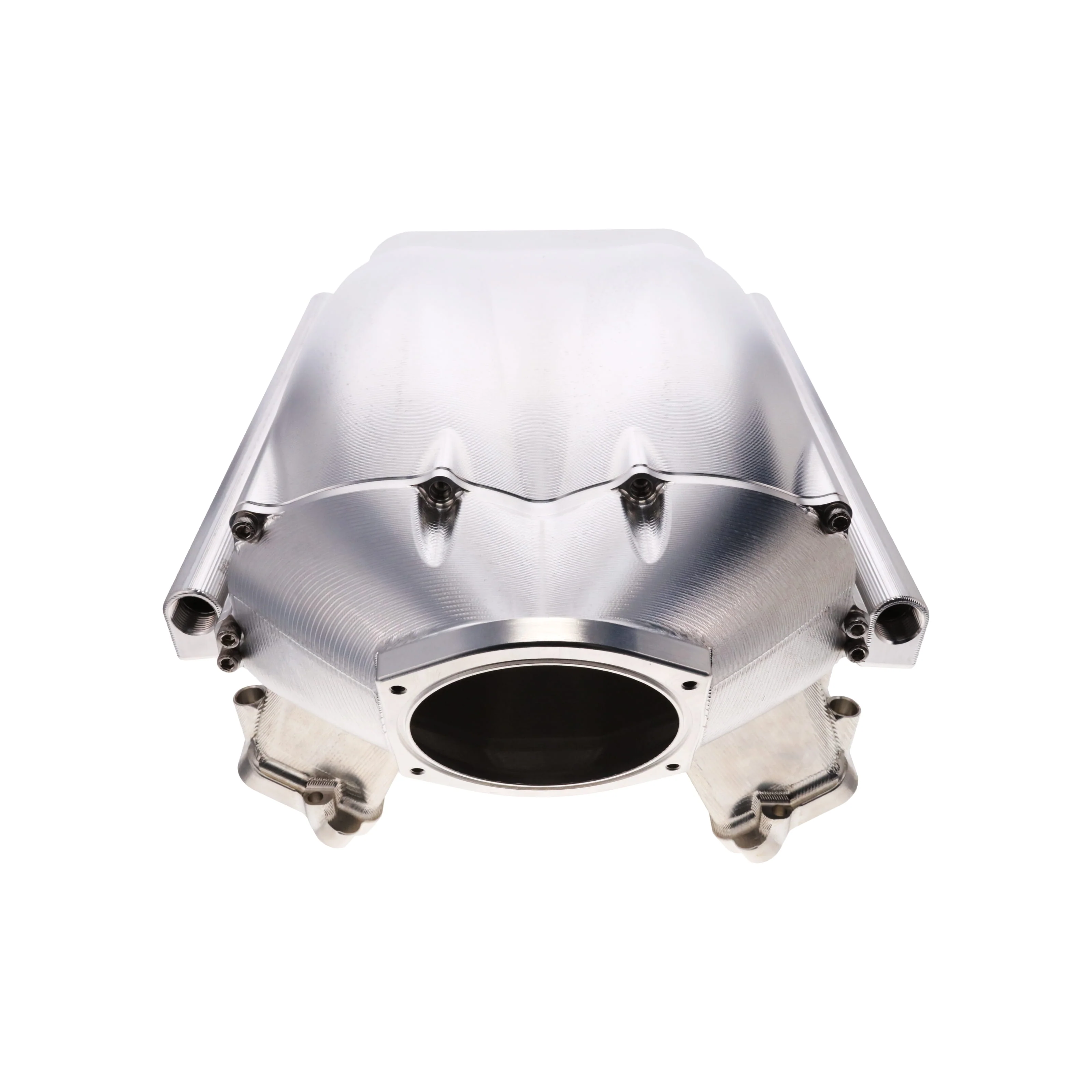

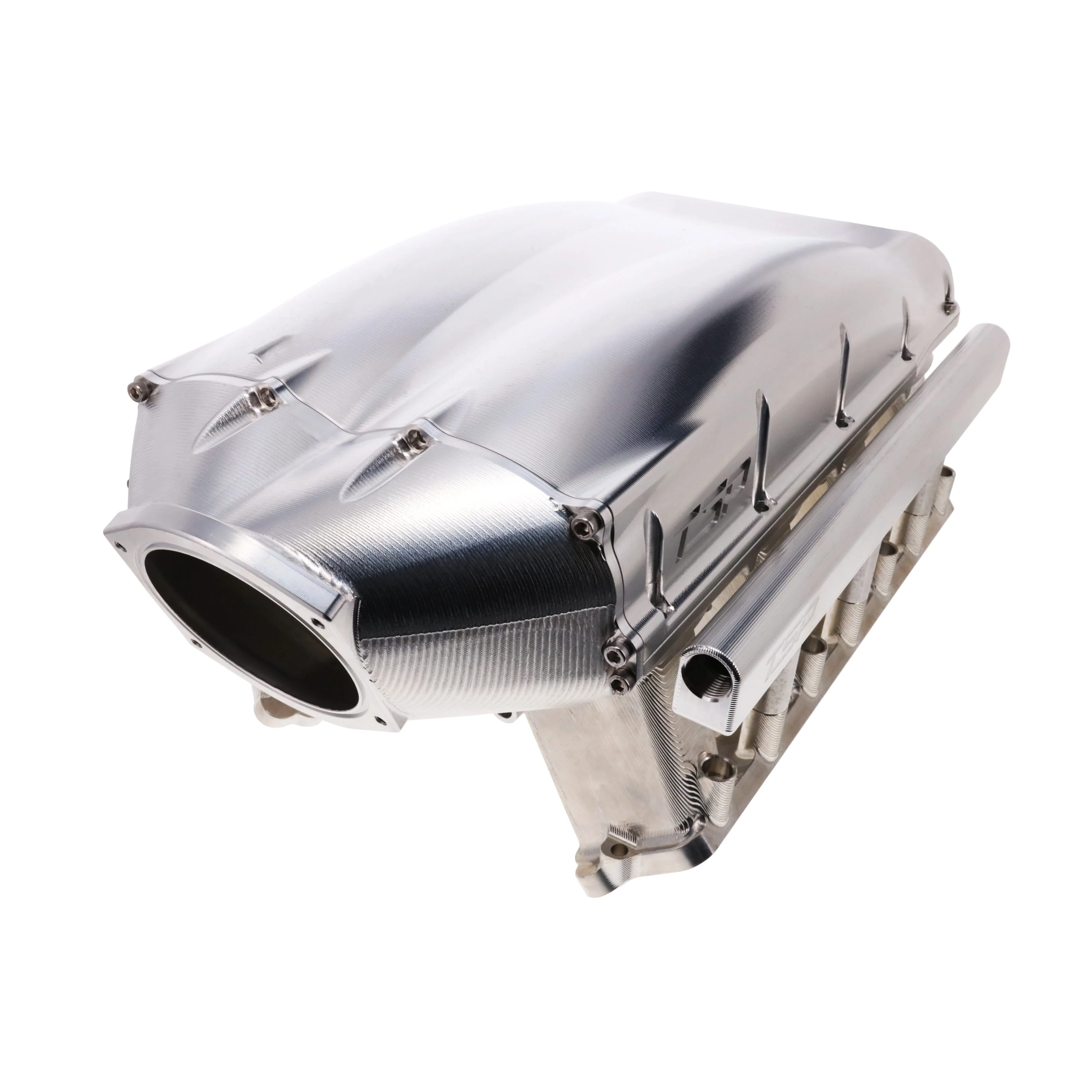

GM LS Rectangle Port V Series Billet Aluminum Hi-Rise Intake - Natural

Upgrade your LS-powered build with the Top Street Performance GM LS Rectangle Port V-Series Billet Aluminum Hi-Rise Intake Manifold. Designed for Chevrolet Small Block V8 Gen III (LS-Based) 6.2L / 376ci applications, this premium billet aluminum intake manifold delivers exceptional airflow capacity, modular serviceability, and race-inspired styling for high-performance street, drag racing, and competition builds.

Fresh off its award-winning appearance at the 2024 SEMA Show, the V-Series intake manifold was engineered to maximize airflow efficiency and support serious horsepower potential. The single-plane hi-rise design features increased plenum volume and optimized runner geometry to improve airflow at higher engine speeds, making it an excellent choice for naturally aspirated, turbocharged, and supercharged engine combinations.

Manufactured from precision-machined T-6061 billet aluminum, this LS intake manifold provides exceptional strength, durability, and premium appearance. The modular design simplifies installation, maintenance, and future upgrades, while the included custom V-Series fuel rails help create a clean, professional engine bay appearance.

Designed for electronic fuel injection applications, the manifold utilizes a stock LS3 throttle body bolt pattern, high-flow plenum design, EV1 injector provisions, and Gen IV 3-Bar MAP sensor compatibility.

Whether you're building a high-performance 6.2L LS street car, race vehicle, restomod, or LS swap project, this billet aluminum intake manifold delivers the airflow capacity, tuning flexibility, and performance potential demanded by serious LS enthusiasts.

Billet Aluminum Intake Manifold Technology
The Top Street Performance V-Series Hi-Rise Intake Manifold is precision machined from premium T-6061 billet aluminum and engineered for high-performance LS applications. The modular design simplifies maintenance and future upgrades while delivering the durability, appearance, and airflow performance expected from a premium induction system. Included V-Series fuel rails provide a complete EFI-ready solution.

High-RPM Performance Benefits
The single-plane hi-rise design is engineered to maximize airflow and support serious horsepower levels. Increased plenum volume and optimized runner design help improve airflow efficiency at elevated RPM, making this intake manifold ideal for street/strip, drag racing, boosted, and competition-oriented applications.

COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. III (LS BASED)
• 6.2 L / 376 in3

COMMON VEHICLE APPLICATIONS
• Chevrolet Silverado
• GMC Sierra
• Chevrolet Camaro
• Chevrolet Corvette
• Chevrolet Tahoe
• CTS-V

NOTES
• Fits Chevrolet Small Block V8 Gen III (LS-Based) 6.2L / 376ci applications
• Single-plane hi-rise intake manifold design
• Billet T-6061 aluminum construction
• Includes custom V-Series fuel rails
• Uses stock LS3 throttle body bolt pattern
• Features Gen IV 3-Bar MAP sensor provision
• Supports electronic fuel injection systems
• Verify cylinder head configuration, throttle body compatibility, fuel system requirements, and hood clearance before installation

SPECIFICATIONS:
Basic Operating RPM Range: 1,500-9,000 RPM
Center Maximum Height: 10.550 in.
Color: Silver
Deck Height: Standard
EGR Port: Yes
Front Maximum Height: 10.086 in.
Fuel Injection Style: Multi-port Fuel Injection
Fuel Injector Stye Provision: EV1
Fuel Rail Color: Silver
Fuel Rail Finish: Natural
Fuel Rail Fitting Thread Diameter: -10 AN
Fuel Rail Material: Aluminum
Fuel Rails Included: Yes
Fuel System Type: Electronic Fuel Injection
Gasket Or Seal Included: Yes
Grade Type: Performance
Intake Port Shape: Rectangle
Manifold Absolute Pressure Sensor Port Included: Yes
Manifold Absolute Pressure Sensor Port Style: Gen IV 3-bar
Manifold Finish: Natural
Material: Aluminum

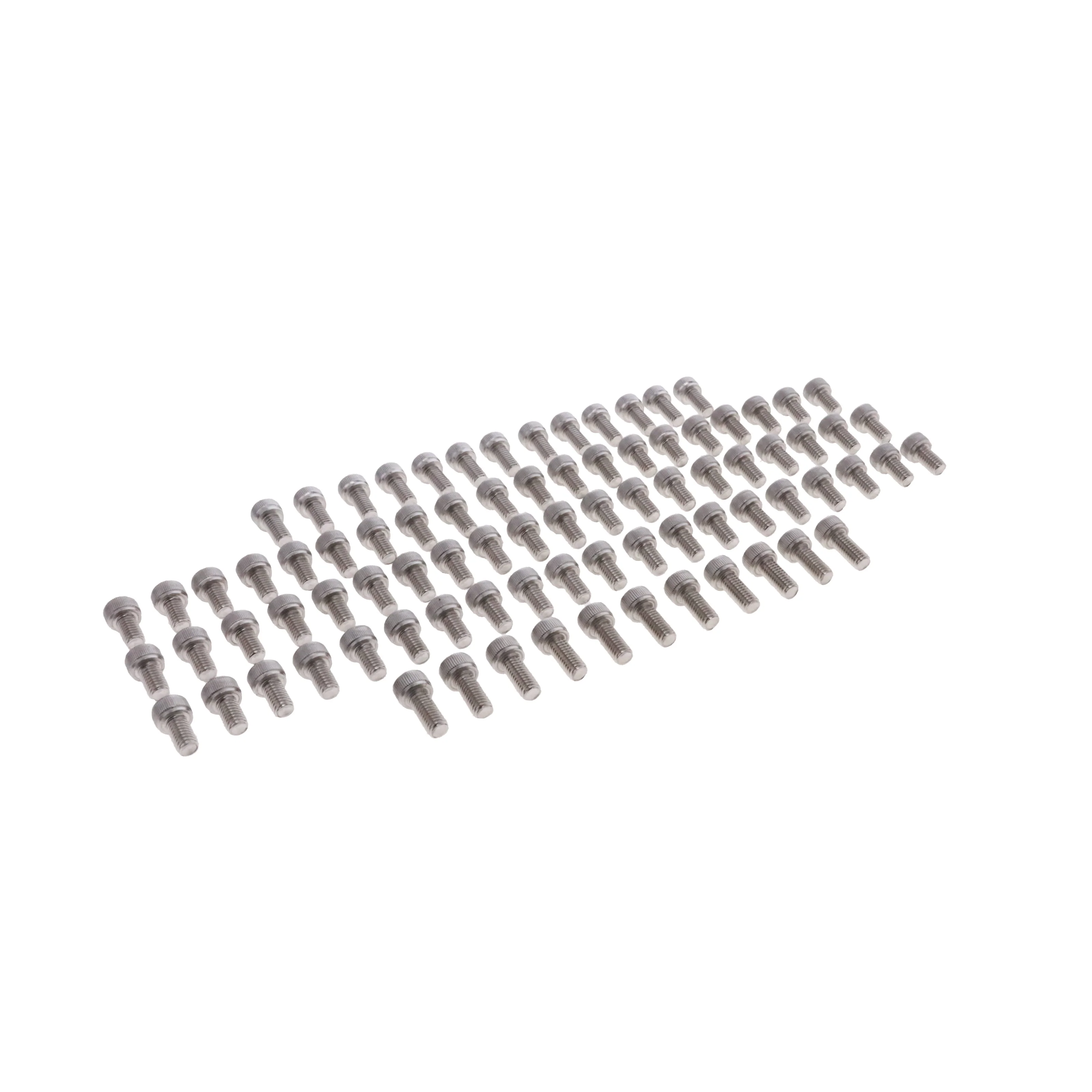

Mounting Hardware Included: Yes
Mounting Hole Quantity: 10
Plenum Thickness: 8 mm
Rear Maximum Height: 8.933 in.
Removable Runners: Yes
Removable Throttle Body Flange: Yes
Removable Top: Yes
Runner Length: 4.800 in.
Single Or Dual Plane Type: Single Plane
Supplemental Boss Quantity: 2
Throttle Body Bore Size: 102.200 mm
