Cadillac 472/500 V8 HEI Distributor

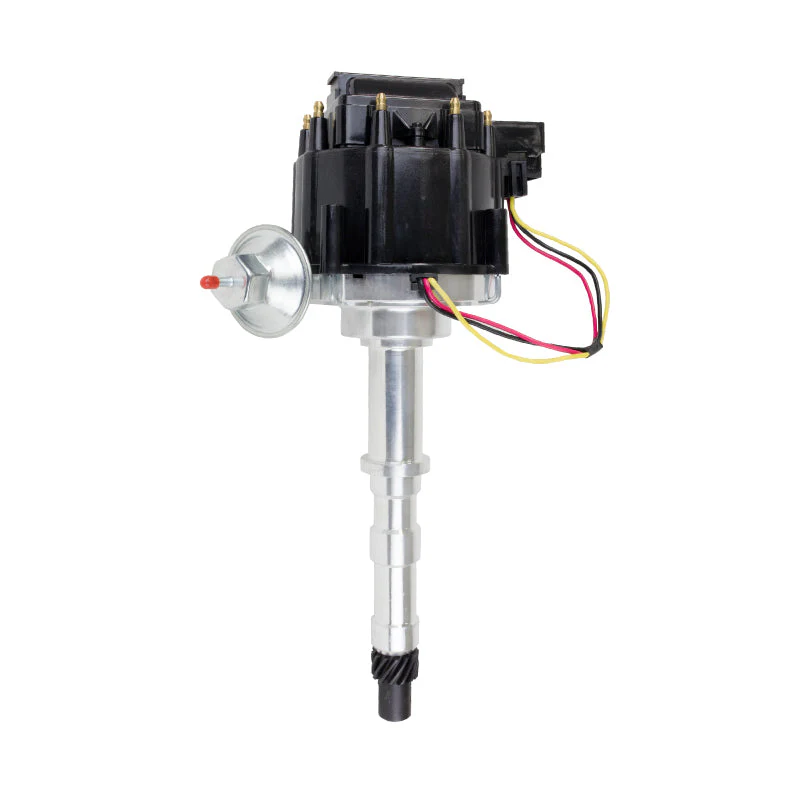

The TSP HEI Distributor for the Cadillac V8 is a self-contained large-cap HEI ignition upgrade covering the complete Cadillac big block V8 family — 368 CID (6.0L), 425 CID (7.0L), 472 CID (7.7L), and 500 CID (8.2L) — in carbureted applications from 1968 through 1984. The integrated HEI design combines the ignition coil, ignition module, cap, and rotor into a single unit, connecting to a single 12-volt source with no external coil, ignition box, or condenser required.

The Cadillac big block V8 powered the full range of Cadillac's lineup across four displacements and three decades — from the 472 CID introduced in 1968 through the 500 CID of the early-to-mid 1970s, into the 425 CID of the late 1970s, and the 368 CID used through the early 1980s. Whether the application is a DeVille, Eldorado, Fleetwood, Calais, Brougham, or Commercial Chassis, this single HEI distributor spans the complete carbureted Cadillac big block production era.

The 65,000-volt internal HEI coil delivers substantially stronger spark than a factory points-style distributor, supporting easier cold starts, cleaner idle quality, and more consistent ignition performance across the RPM range. A magnetic pickup trigger replaces the mechanical points contact and requires no routine maintenance — a meaningful advantage on Cadillac V8 engines where original ignition components may be decades old. Both mechanical and vacuum advance are included, with a vacuum advance adjustment tool shipped with the distributor for advance curve tuning.



The Cadillac Big Block V8 Family — What This Distributor Covers
The Cadillac big block V8 is a distinct engine family produced exclusively for Cadillac vehicles from 1968 through 1984. It is not related to the Chevrolet big block, Buick big block, or any other GM V8 despite similar displacement figures in some cases. The family progressed through four displacements — 472 (1968–1974), 500 (1970–1976), 425 (1977–1979), and 368 (1980–1984) — driven by emissions requirements and fuel economy standards. All four share compatible distributor architecture, making this HEI unit the correct ignition upgrade across the entire carbureted Cadillac big block production run.

Factory points-style distributors on these engines are now fifty-plus years old on the earliest applications. Points wear, timing drifts, and cold-start performance degrades — problems that an HEI upgrade directly addresses. The self-contained HEI design eliminates the points, condenser, and external coil in a single installation, replacing them with a sealed magnetic trigger system and integrated 65,000-volt coil that requires no routine maintenance.

Performance Benefit
The 65,000-volt internal HEI coil fires spark plugs more consistently than a factory points setup across the full RPM range. The result is stronger cold-start performance, cleaner idle quality, and more stable ignition timing over the life of the engine — particularly important on high-displacement Cadillac V8 applications where consistent combustion across all eight cylinders matters for smooth operation. Both mechanical and vacuum advance are included, and the vacuum advance adjustment tool allows the vacuum advance curve to be tuned for your specific application and driving conditions.

COMPATIBLE WITH
CADILLAC BIG BLOCK V8
• 6.0L / 368 in³ (Compatible with carbureted L33 version only)
• 7.0L / 425 in³ (Compatible with carbureted RWD applications only)
• 7.7L / 472 in³
• 8.2L / 500 in³

NOTES
• Fits Cadillac 472, 500, 425, and 368 V8 engines in carbureted applications.
• Not compatible with fuel-injected, throttle body injected, or V8-6-4 variable displacement versions.
• Not compatible with Cadillac HT-4100 or Northstar V8 engines.
• Designed for carbureted HEI ignition systems only.
• This distributor is designed for a 12 volt electrical system with an alternator.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Verify distributor gear compatibility with camshaft material before installation.

COMMON VEHICLE APPLICATIONS
Cadillac Calais (472, 1968–1970)
Cadillac DeVille (472, 1968–1976; 425, 1977–1979; 368 carbureted, 1980–1984)
Cadillac Fleetwood / Fleetwood Brougham (472, 1968–1976; 425, 1977–1979; 368 carbureted, 1980–1984)
Cadillac Eldorado (472, 1968–1969; 500, 1970–1978; 425, 1979)
Cadillac Commercial Chassis (368, 1980–1984)

SPECIFICATIONS
Trigger Type: Magnetic
Advance Type: Mechanical And Vacuum
Color: Available in Red, Blue, Black
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: No
Coil Included: Yes
Coil Type: Internal
Coil Output: 65000 V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: No
Marine Use: No
Cylinders: 8
Vacuum Advance Adjustment Tool: Included
Installation Instructions: Included
