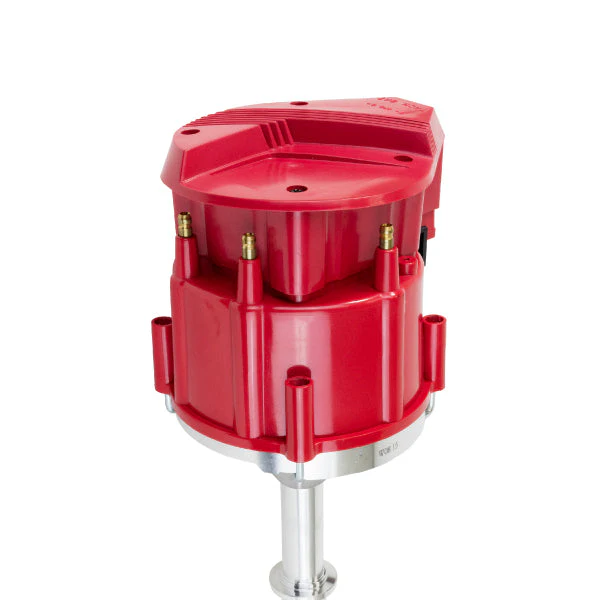

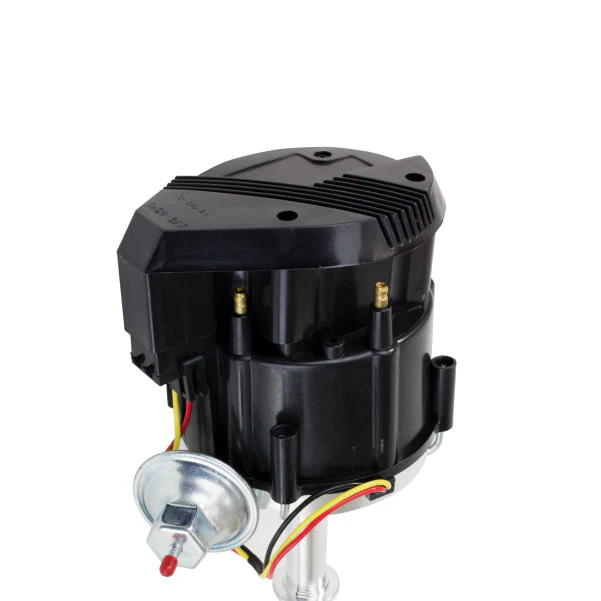

Chevy 194-292 Late L6 HEI Distributor with Super Cap

HEI Distributor with Super Cap for Chevrolet Late Inline-Six 194, 230, 250, and 292 CID (1963 and Later)

The Chevrolet inline-six engine family that ran from 1963 onward — covering the 194, 230, 250, and 292 CID displacements — powered some of the most popular builds in Chevrolet's history: Nova and Camaro inline-six swaps, C10 and K10 work trucks, Chevelle base models, and full-size vans. This TSP HEI distributor with Super Cap brings modern high-energy ignition performance to those applications with a self-contained design that eliminates the need for a separate ignition box or external coil.

This is a true HEI distributor — the internal coil and Super Cap are built into the distributor unit, producing 65,000 volts of spark output. That is a meaningful increase over standard external-coil distributor setups and results in more complete combustion across the RPM range, particularly on engines with wider plug gaps, mild performance camshafts, or lean-running carbureted setups. The magnetic trigger delivers a consistent, repeatable signal, and mechanical and vacuum advance give you direct control over base timing and total advance curve.



Applications
Compatible with Chevrolet inline-six engines (1963 and later) — 3.2L / 194 CID, 3.8L / 230 CID, 4.1L / 250 CID, and 4.8L / 292 CID. Not compatible with early Chevrolet stovebolt inline-six engines — 216, 235, or 261 CID. Designed for HEI standalone ignition systems and carbureted applications only. Confirmed common vehicle applications include Chevrolet C10, K10, Nova, Camaro, Chevelle, and Chevrolet/GMC vans.

COMPATIBLE WITH
CHEVROLET INLINE 6 (1963 AND LATER)
• 3.2L / 194 in³
• 3.8L / 230 in³
• 4.1L / 250 in³
• 4.8L / 292 in³

NOTES
• Fits Chevrolet Turbo-Thrift inline-six engines (194, 230, 250, and 292) used in 1963 and later applications.
Not compatible with early Chevrolet Stovebolt inline-six engines (216, 235, 261).
• The 292 was a truck-only engine in the US; verify tall deck clearance before installation.
• Also fits GM corporate siblings using the 250ci engine (Pontiac Firebird/LeMans, Oldsmobile F-85/Cutlass, Buick Skylark/Special — 1968–1976).
• Designed for carbureted HEI ignition systems only.
• This distributor is designed for a 12 volt electrical system with an alternator.
• It is not compatible with a generator and cannot be used with a ballast resistor.
• Distributor gear compatibility should be verified with camshaft material prior to installation.

COMMON VEHICLE APPLICATIONS
Chevrolet Chevy II / Nova (194, 1962–1967; 230, 1966–1970; 250, 1968–1979)
Chevrolet Chevelle / El Camino (194, 1964–1967; 230, 1964–1967; 250, 1968–1977)
Chevrolet Camaro (230, 1967; 250, 1968–1979)
Chevrolet Impala / Bel Air / Biscayne (230, 1963–1969; 250, 1969–1976)
Chevrolet C/K Trucks (230, 1963–1969; 250, 1969–1984; 292, 1963–1988)
Chevrolet G-Series Van (250, 1971–1978; 292, 1975–1978)
GMC C/K Trucks (230, 1963–1969; 250, 1969–1984; 292, 1963–1988)
Pontiac Firebird / LeMans (250, 1968–1976)
Oldsmobile F-85 / Cutlass (250, 1968–1975)
Buick Skylark / Special (250, 1968–1971)

SPECIFICATIONS
Trigger Type: Magnetic
Advance Type: Mechanical And Vacuum
Color: Available in Red, Black
Terminal Gender: Male
Cap Type: Super Cap
Mechanical Tach Drive: No
Slip Collar: No
Coil Included: Yes
Coil Type: Internal
Coil Output: 65000 V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: No
Marine Use: No
Cylinders: 6
Vacuum Advance Adjustment Tool: Included
Installation Instructions: Included
