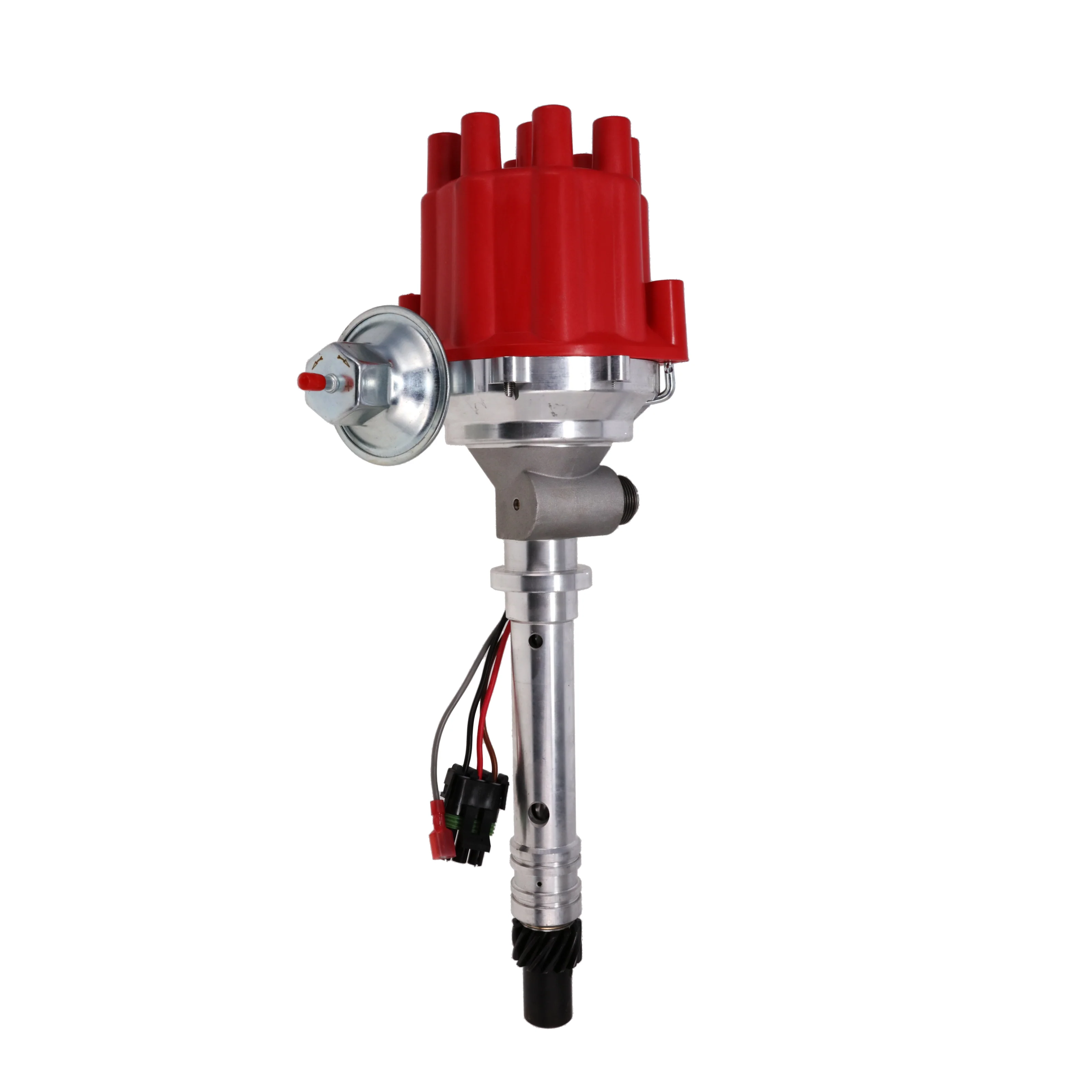

Chevy Corvette V8 Pro Series Ready to Run Female Distributor with Mechanical Tach Drive

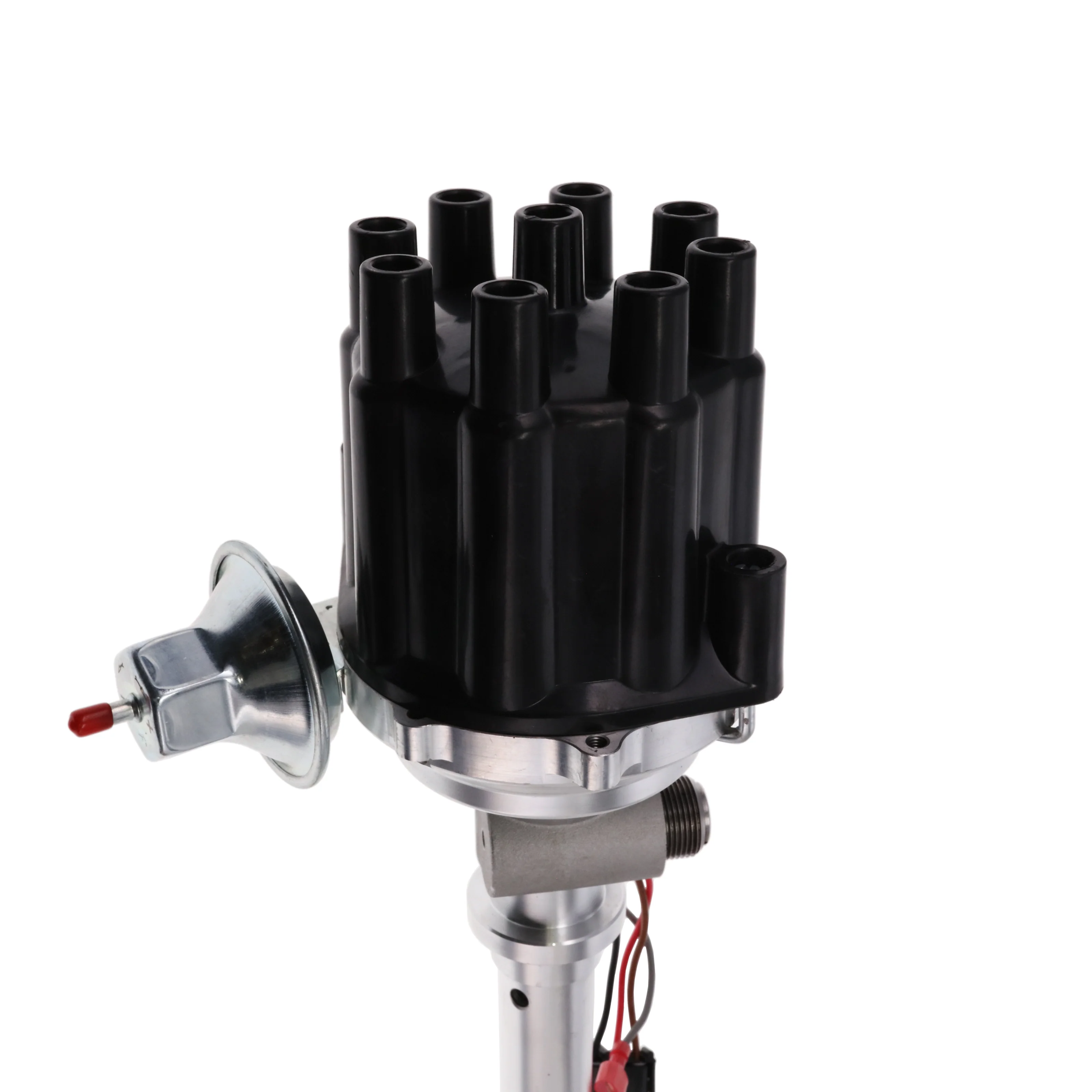

The TSP Pro Series Ready-to-Run Distributor for the Chevy Corvette with Mechanical Tach Drive — Female Cap version — is functionally identical to the male terminal cap version (JM7715) in every respect: same engine fitment, same advance kit, same included components, same price. The sole difference is the terminal gender on the distributor cap. This unit features female terminal sockets that accept male-pin spark plug wire boots.

Terminal gender determines plug wire compatibility. Female terminal caps accept spark plug wires with male-pin boots. Male terminal caps accept spark plug wires with female-socket boots. Before ordering, confirm the terminal gender of your replacement or upgraded plug wire set. Using the wrong terminal gender requires adapters and is not recommended.

The mechanical tach drive provision on this distributor is required for cable-driven tachometers found in the Corvette C2 (1963–1967) and C3 (1968–1982). Without it, a cable-driven tachometer has no signal source and will not operate. If your vehicle uses an electronic tachometer signal rather than a physical tachometer cable, the standard TSP Pro Series distributor without tach drive is the correct and less expensive choice.

Engine fitment covers the complete Gen. I Chevrolet small block — 262 through 400 CID — and the standard-deck Mark IV big block — 396, 402, 427, and 454 CID — in carbureted applications. Three advance bushings and four advance springs are included for mechanical advance curve tuning. A vacuum advance block-off plate, tachometer output extension cable, power extension cable, and color-matched plug wire retainer are also included. External ignition coil required — 35,000V minimum, not included.



Female Cap vs. Male Cap — Which Version Do You Need?
This listing (JM7715F) and the companion listing (JM7715) are the same Pro Series Corvette tach drive distributor in every functional respect — same engine fitment, same specs, same advance kit, same price. The only difference is terminal gender on the distributor cap. Female terminals are recessed sockets on the cap that accept male-pin spark plug wire boots. Male terminals are protruding pins that insert into female-socket wire boots.

Before ordering, check the terminal type on the spark plug wire boots where they connect to the distributor cap, or verify the terminal gender of your replacement wire set. If the wire boots have a male pin that inserts into the cap, this female cap version (JM7715F) is correct. If the wire boots have a female socket that slides over a pin on the cap, the male terminal version (JM7715) is correct.

What This Distributor Does — Three Features in One Unit
This unit combines three capabilities that standard Pro Series and standard tach drive distributors provide separately:

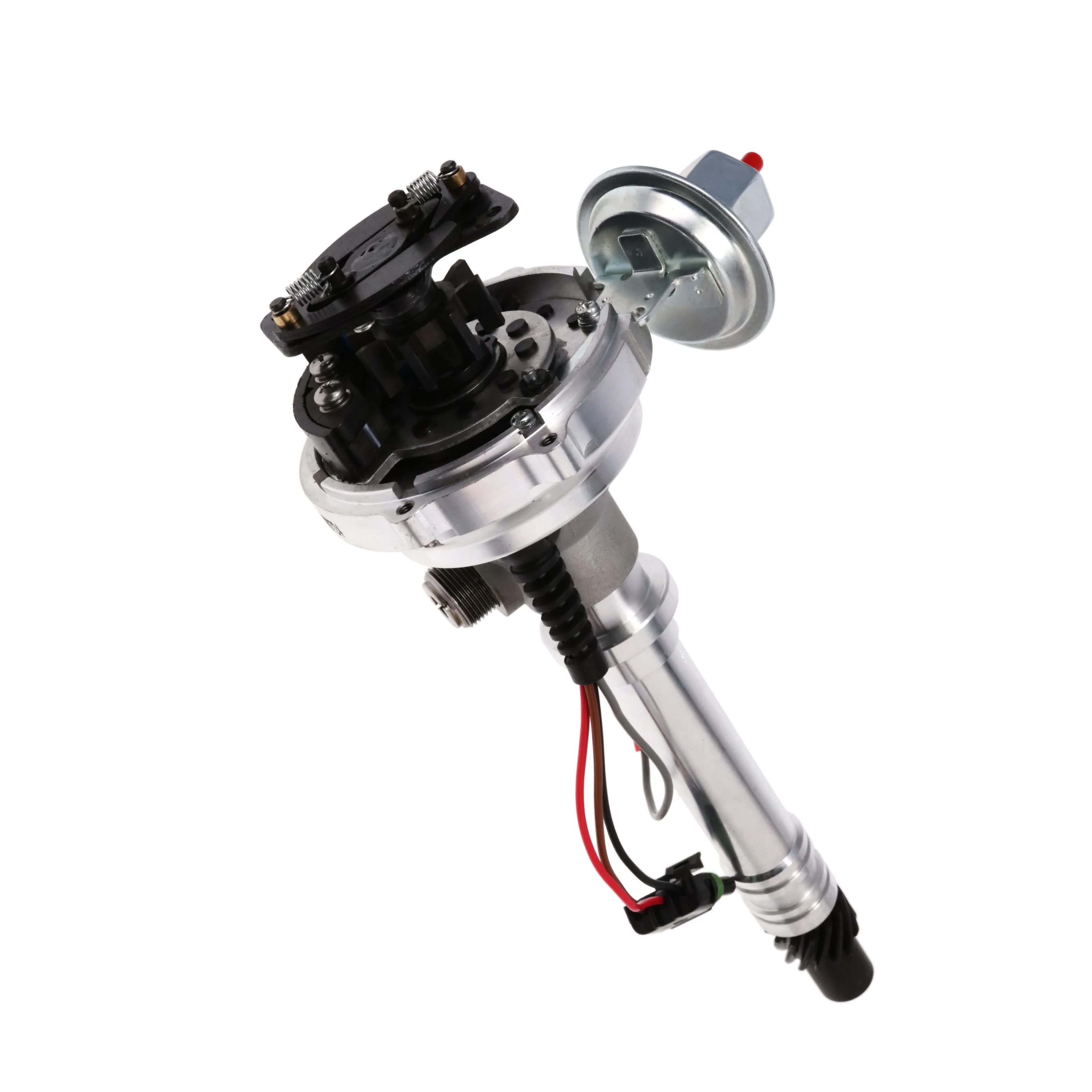

One — the Pro Series Ready-to-Run design with external coil flexibility and advance curve tunability through the included three-bushing and four-spring advance kit. A vacuum advance block-off plate is included for performance builds preferring full mechanical advance control.
Two — the mechanical tach drive provision for cable-driven tachometers used in the Corvette C2 (1963–1967) and C3 (1968–1982) as standard equipment.
Three — a female terminal cap specifically for plug wire sets using male-pin boots.

COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 262 in³
• 4.3 L / 265 in³
• 4.4 L / 267 in³
• 4.6 L / 283 in³
• 4.9 L / 302 in³
• 5.0 L / 305 in³
• 5.0 L / 307 in³
• 5.4 L / 327 in³
• 5.7 L / 350 in³
• 6.6 L / 400 in³

CHEVROLET BIG BLOCK V8 GEN. II (MARK IV) — STANDARD DECK ONLY
• 6.5 L / 396 in³
• 6.6 L / 402 in³
• 7.0 L / 427 in³
• 7.4 L / 454 in³

NOTES
• Fits Chevrolet Gen. I small block and Gen. II (Mark IV) standard deck big block V8 engines.
• Includes mechanical tach drive provision for cable-driven tachometers.
• Designed exclusively for Corvette applications using a cable-driven mechanical tachometer.
• Not compatible with Camaro, Chevelle, Nova, Impala, or truck applications — those vehicles do not use mechanical tach drive distributors.
• Not compatible with tall deck big block engines (366ci, tall deck 427ci truck engines).
• Not compatible with engines using a governor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult cam manufacturer for recommended gear material.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be used with a ballast resistor.

COMMON VEHICLE APPLICATIONS
Chevrolet Corvette C1 (1953–1962)
Chevrolet Corvette C2 (1963–1967)
Chevrolet Corvette C3 (1968–1982)

SPECIFICATIONS
Trigger Type: Circuit Board Module with Magnetic Pick-Up
Distributor Rotation: Clockwise
Advance Type: Mechanical and Vacuum
Cap Color: Available in Black or Red
Terminal Gender: Female
Mechanical Tach Drive: Yes
Slip Collar: No
Coil Included: No
Coil Type: External
Required Coil Output: 35,000+ V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: No
Marine Use: No
Cylinders: 8
3 Bushings And 4 Springs for Mechanical Advance: Included
Color-Matched Spark Plug Wire Retainer with Screws: Included
Vacuum Advance Block-Off Plate (Black): Included
Power Extension Cable: Included
Tachometer Output Extension Cable: Included
