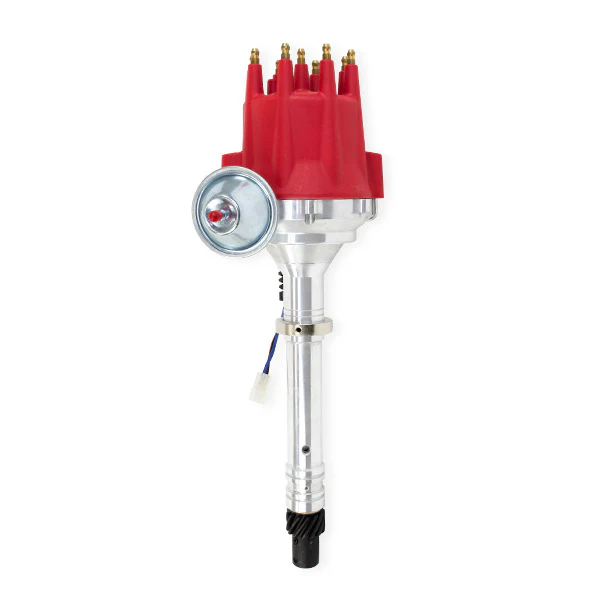

Chevy SB/BB V8 Pro Series Pro Billet Distributor with Vacuum Advance

The TSP Pro Series Pro Billet Distributor with Vacuum Advance for the Chevy SBC and BBC delivers the premium billet construction, slip collar timing precision, and advance curve tunability of the Pro Series Pro Billet — with the addition of vacuum advance for street-driven applications. This is the street-optimized version of the Pro Series Pro Billet, designed for performance builds that use an external CDI ignition box but also benefit from vacuum advance for light-throttle drivability, idle quality, and part-throttle fuel economy.

An external ignition control box is required. Without a compatible CDI box — MSD 6A, MSD 6AL, Mallory HyFire, Crane HI-6, or equivalent — this distributor will not function. An external ignition coil rated at 35,000 volts or higher is also required. Neither the box nor the coil is included. If you need a self-contained ignition upgrade without an external box, see the TSP HEI (JM6501), small cap Ready-to-Run (JM6701), or Pro Series Ready-to-Run (JM7715).

Vacuum Advance vs. Mechanical Only — Choosing the Right Pro Series Pro Billet:
The mechanical-only version (JM7601) and this vacuum advance version (JM7601-1) are the same price and share the same premium billet construction, slip collar, advance tuning kit, and ignition box requirement. The difference is in how timing advances at light throttle and idle. Vacuum advance adds additional ignition timing under light throttle and cruise conditions — improving idle quality, reducing fuel consumption at part throttle, and improving drivability on the street. At full throttle and high RPM, vacuum advance typically drops out and has no effect on peak performance. For performance street builds where the car is also daily driven or driven on the street regularly, this vacuum advance version is the correct choice. For dedicated race, track-only, or dyno applications where vacuum advance is not wanted, the mechanical-only version (JM7601) is the correct unit.

The slip collar allows the distributor to be rotated for precise timing adjustment and locked firmly in position, preventing timing movement under high-RPM and high-vibration conditions. Three advance bushings and four advance springs are included for mechanical advance curve customization. A color-matched spark plug wire retainer with screws is included.



Ignition Box + Vacuum Advance — How They Work Together
Running vacuum advance with an external CDI ignition box is a common and effective setup for street performance builds. The mechanical advance curve provides the base timing advance at RPM, the vacuum advance adds timing at light throttle and idle, and the external ignition box provides the high-energy spark output and any additional timing control features your box offers (such as MSD's built-in rev limiter or timing retard). The three advance bushings and four springs allow the mechanical advance curve to be precisely calibrated for your engine, while the vacuum advance canister handles the light-throttle timing addition automatically.

Premium Billet Features — What You're Getting
Slip collar: Locks the distributor housing in precise position after timing is set, preventing timing movement under high-RPM vibration — standard equipment on quality billet race distributors.
Advance tuning kit: Three bushings and four springs for full mechanical advance curve customization matched to your specific engine, camshaft, and RPM range.
Billet aluminum housing: Compact design providing additional clearance in performance engine bays where larger distributor housings may interfere with aftermarket intakes or other components.

COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 262 in³
• 4.3 L / 265 in³
• 4.4 L / 267 in³
• 4.6 L / 283 in³
• 4.9 L / 302 in³
• 5.0 L / 305 in³
• 5.0 L / 307 in³
• 5.4 L / 327 in³
• 5.7 L / 350 in³
• 6.6 L / 400 in³

CHEVROLET BIG BLOCK V8 GEN. II
• 6.5 L / 396 in³
• 6.6 L / 402 in³
• 7.0 L / 427 in³
• 7.4 L / 454 in³

NOTES
• Fits Chevrolet Gen. I small block and Gen. II (Mark IV) standard deck big block V8 engines.
• Mechanical and vacuum advance design — recommended for street-driven applications.
• Requires an external ignition box — not included. Not compatible with HEI coil-in-cap setups.
• Not compatible with tall deck big block engines (366ci, tall deck 427ci truck engines).
• Not compatible with engines using a governor.
• Distributor gear compatibility should be verified with camshaft material prior to installation.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be used with a ballast resistor.

COMMON VEHICLE APPLICATIONS
Chevrolet Camaro (1967–1981)
Chevrolet Chevelle / Malibu / El Camino (1964–1977)
Chevrolet Nova (1966–1979)
Chevrolet Impala / Bel Air / Biscayne (1955–1976)
Chevrolet Corvette (1955–1982)
Chevrolet Monte Carlo (1970–1977)
Chevrolet C/K Trucks (1955–1987)
GMC C/K Trucks (1955–1987)

SPECIFICATIONS
Trigger Type: Magnetic
Advance Type: Mechanical & Vacuum
Cap Color: Available in Black, Red
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: Yes
Coil Included: No
Coil Type: External
Coil Output: 35,000+ Recommended V
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: Yes
Marine Use: No
Cylinders: 8
3 Bushings And 4 Springs for Mechanical Advance: Included
Color-Matched Spark Plug Wire Retainer with Screws: Included
